Rohde & Schwarz FSVR40
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 40 GHz |
| Real-Time Bandwidth | Up to 40 MHz |
| Display Average Noise Level (DANL) | -150 dBm (typ.) at 1 GHz |
| Phase Noise | -105 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Third-Order Intercept Point (TOI) | +20 dBm (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Maximum Input Power (RF) | +30 dBm |
| Spurious-Free Dynamic Range (SFDR) | Up to 75 dB |
| Probability of Intercept (POI) | Minimum signal duration 3.125 µs for 100% POI |
| Interface & Connectivity | LAN (1000BASE-T), USB, GPIB, External Trigger I/O |
Rohde & Schwarz FSVR40 Options:
- FSVR40 - FSV-B3 - Audio Demodulator
- FSVR40 - FSV-B4 (model .02) - OCXO Reference Frequency
- FSVR40 - FSV-B4 (model .03) - OCXO Extended Frequency Stability
- FSVR40 - FSV-B5 - Additional Interfaces (IF out, video out, AUX port, trigger out, 2 × USB)
- FSVR40 - FSV-B17 - Digital Baseband Interface
- FSVR40 - FSVR-B18 - Solid State Drive (removable hard drive)
- FSVR40 - FSVR-B19 - Spare Hard Drive (removable hard drive)
- FSVR40 - FSV-B21 - LO/IF Ports for External Mixers
- FSVR40 - FSV-B22 - RF Preamplifier (9 kHz to 7 GHz)
- FSVR40 - FSV-B24 (1310.9616.40) - RF Preamplifier (9 kHz to 40 GHz)
- FSVR40 - FSV-B25 - Electronic Attenuator, 1 dB steps
- FSVR40 - FSV-K7S - FM Stereo Measurements
- FSVR40 - FSV-K8 - Bluetooth/EDR Measurements
- FSVR40 - FSV-K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FSVR40 - FSV-K10 - Analysis of GSM, EDGE and EDGE Evolution Signals
- FSVR40 - FSV-K30 - Noise Figure and Gain Measurements
- FSVR40 - FSV-K40 - Phase Noise Measurement Application
- FSVR40 - FSV-K70 - Vector Signal Analysis
- FSVR40 - FSV-K72 - Analysis of 3GPP FDD Base Station Signals incl. HSPA+
- FSVR40 - FSV-K73 - 3GPP FDD UE Analysis incl. HSPA+
- FSVR40 - FSV-K76 - 3GPP TD-SCDMA BTS Measurements
- FSVR40 - FSV-K77 - TD-SCDMA UE Measurements
- FSVR40 - FSV-K82 - Analysis of CDMA2000 Base Station Signals
- FSVR40 - FSV-K83 - CDMA2000 MS Measurements
- FSVR40 - FSV-K84 - Analysis of 1xEV-DO Base Station Signals
- FSVR40 - FSV-K85 - 1xEV-DO MS Measurements
- FSVR40 - FSV-K91 - Analysis of WLAN 802.11a, b, g, j Signals
- FSVR40 - FSV-K91n - Extension of R&S FSV-K91 to 802.11n
- FSVR40 - FSV-K93 - Analysis of WiMAX 802.16 SISO Signals
- FSVR40 - FSV-K100 - Analysis of EUTRA/LTE FDD Downlink Signals
- FSVR40 - FSV-K101 - Analysis of EUTRA/LTE FDD Uplink Signals
- FSVR40 - FSV-K102 - EUTRA/LTE Downlink MIMO Measurements
- FSVR40 - FSV-K104 - Analysis of EUTRA/LTE TDD Downlink Signals
- FSVR40 - FSV-K105 - Analysis of EUTRA/LTE TDD Uplink Signals
- FSVR40 - FSV-K96PC - OFDM Vector Signal Analysis Software
- FSVR40 - FSV-K130PC - Distortion Analysis Software
| Model | FSVR40 |
|---|

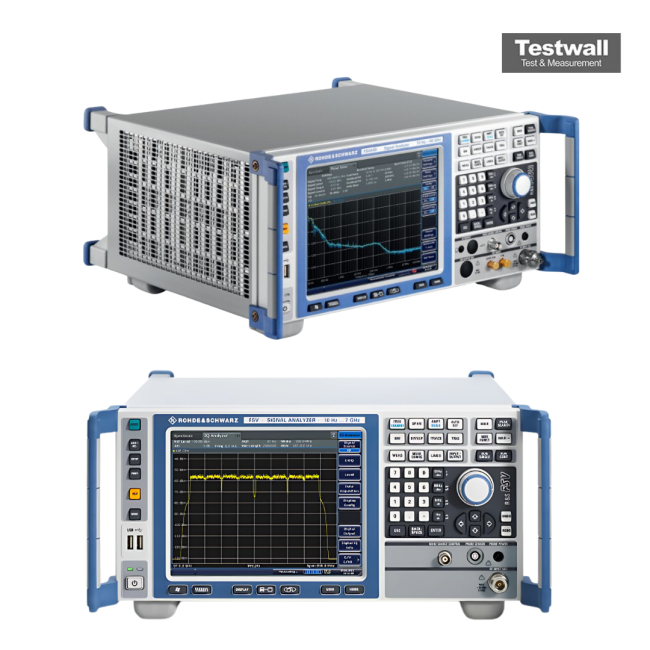

The Rohde & Schwarz FSVR40 is a high-speed, multifunctional signal and spectrum analyzer with frequency coverage up to 40 GHz and optional 160 MHz bandwidth. It offers exceptional RF performance, 0.4 dB level uncertainty, and various applications including GSM, LTE, WiMAX™, and WLAN. Optimized for development, production, and service, it includes fast measurement routines and direct sensor support.
Ideal for RF system tasks, the FSVR40 ensures efficient, on-site upgradable testing in compact, user-friendly form with touchscreen controls and advanced noise performance. Security is enhanced with a removable hard drive.
Testwall can supply the used Rohde & Schwarz FSVR40, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSVR40.
