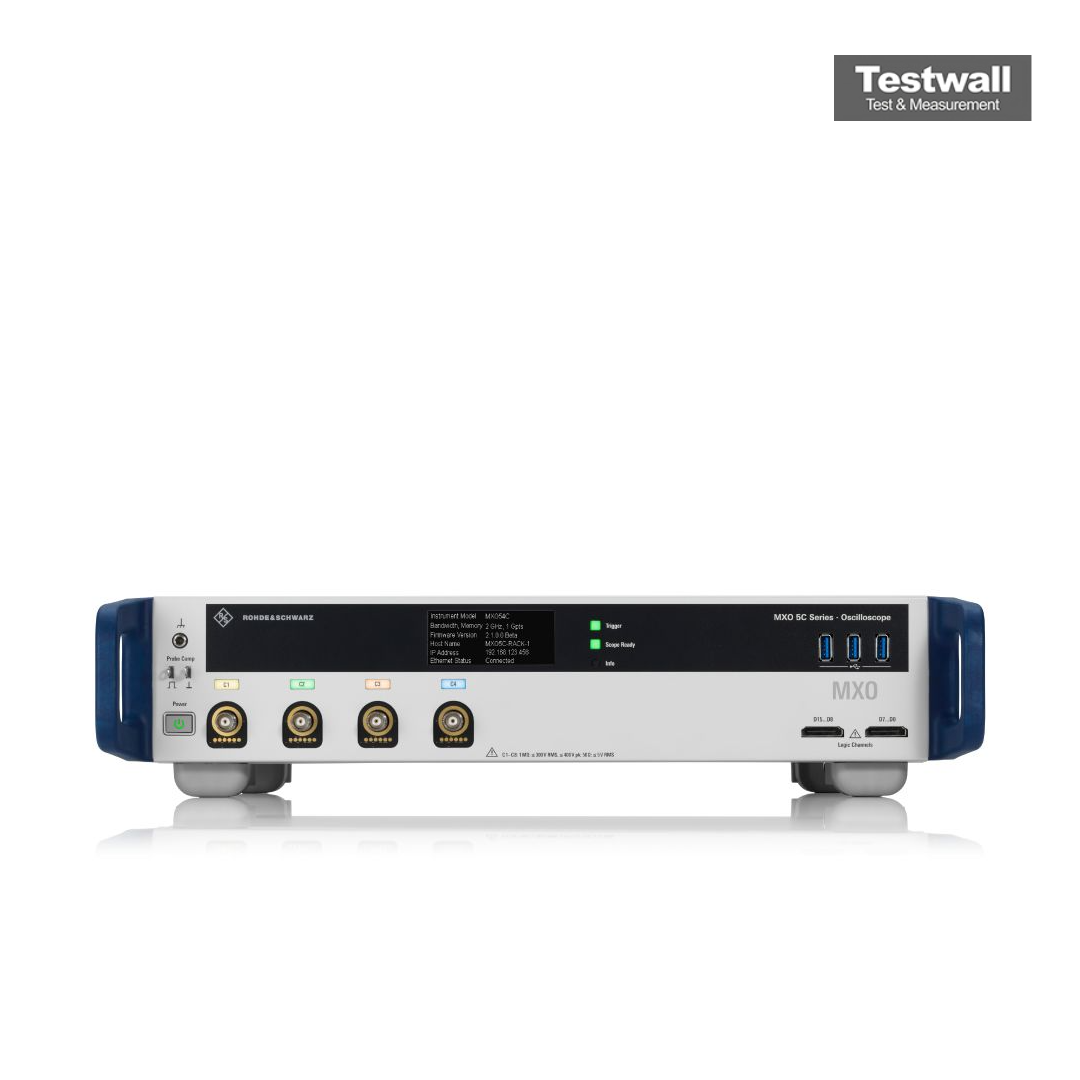

Rohde & Schwarz MXO54C-500
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz (option MXO5C-B245) |
| Number of Channels | 4 analog |
| Sample Rate | Up to 5 GS/s |
| Memory Depth | 500 Mpoints/ch (1 Gpoint optional) |
| Vertical Resolution | 12-bit (18-bit in HD mode) |
| Digital Channels | 16 with MSO option MXO5C-B1 |
| Form Factor | 2U compact / rack-mount, 8.7 kg |
| Waveform Update Rate | > 4,500,000 waveforms per second |
| Display | No built-in display; e-ink status display, HDMI and DisplayPort for an external monitor |
| Arbitrary Waveform Generator | Optional 2-channel, 100 MHz generator (MXO5C-B6) |
| Connectivity | 5x USB 3.1 Type A, USB 3.1 Type B, LAN (1 Gbit/s), HDMI, DisplayPort |
| Series | Rohde & Schwarz MXO 5C |
The Rohde & Schwarz MXO54C-500 is the 500 MHz bandwidth configuration of the MXO54C, a 4-channel compact 2U MXO 5C Series oscilloscope. It has a 12-bit ADC at all sample rates (up to 18-bit in HD mode), samples at up to 5 GS/s, captures more than 4.5 million waveforms per second and offers 500 Mpoints of memory per channel (1 Gpoint optional); it has no built-in display and is used over LAN or with an external monitor.
Bandwidth on the MXO 5C is set by software licence, so the MXO54C can be ordered at 350 MHz, 500 MHz, 1 GHz or 2 GHz. This listing is for the 500 MHz unit (option MXO5C-B245). If you need a different bandwidth, see the MXO54C overview page for all configurations.
Testwall can supply the used Rohde & Schwarz MXO54C-500, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Rohde & Schwarz MXO54C.
