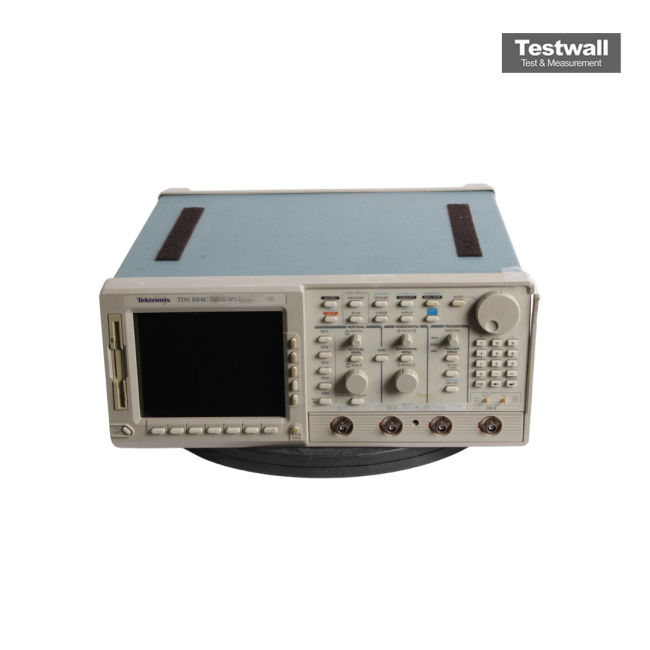

Tektronix TDS684C
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 5 GS/s |
| Number of Channels | 4 |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | Color LCD |
| Connectivity | GPIB, RS-232, Centronics |
Tektronix TDS684C Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS684C - 05 - Video trigger
- TDS684C - 13 - RS-232 and Centronics interfaces
- TDS684C - 1F - Built-in floppy disk drive
- TDS684C - 1M - Long record length
- TDS684C - 2F - Advanced DSP math
- TDS684C - 1R - Rack mount configuration
- TDS684C - 1K - Instrument cart
The Tektronix TDS684C delivers up to 5 GS/s sample rates on all channels with full bandwidth single-shot capture, making it ideal for high-speed digital design validation. It features waveform math, DSP, pass/fail template testing, and a color display. Connectivity includes RS-232, Centronics, and GPIB interfaces, with a record length of up to 15,000 points per channel and a timebase accuracy of 10 ppm.
Engineered for high-speed digital, telecom, and data communication applications, it excels in jitter analysis, signal integrity testing, and transient event capture with precision.
Testwall can supply the used Tektronix TDS684C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS684C.
