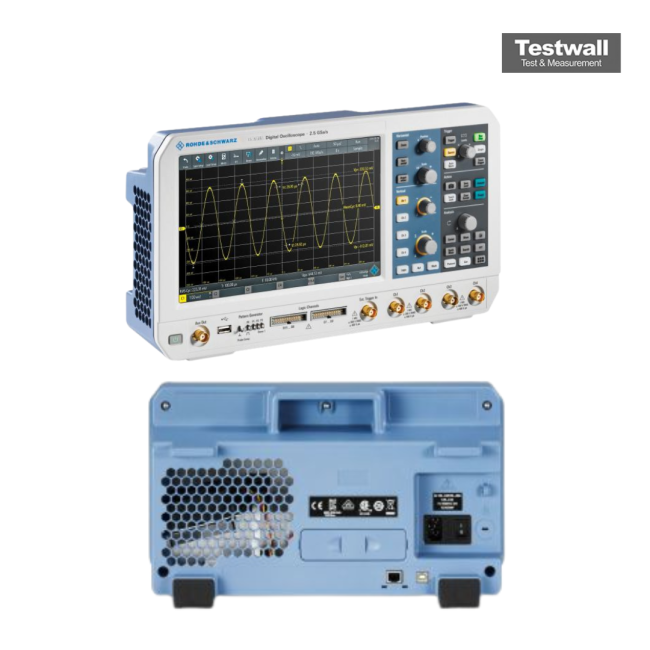

Rohde & Schwarz RTB2000 Digital Oscilloscopes
70 MHz to 300 MHz (upgradeable) Bandwidth
2 or 4 analog channels Number of Channels
2.5 GSa/s Sample Rate
10 Mpoints per channel Memory Depth
10-bit ADC (up to 16-bit with high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 70 MHz to 300 MHz (upgradeable) |
| Number of Channels | 2 or 4 analog channels |
| Sample Rate | 2.5 GSa/s |
| Memory Depth | 10 Mpoints per channel |
| Vertical Resolution | 10-bit ADC (up to 16-bit with high resolution mode) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Logic Analyzer Channels | 16 digital channels (MSO option) |
| Waveform Update Rate | Up to 50,000 waveforms per second |
| Connectivity | USB, Ethernet (LAN), and optional WLAN |
| Protocol Analysis | I2C, SPI, UART, CAN, LIN serial bus triggering and decoding |
Rohde & Schwarz RTB2000 Digital Oscilloscopes Options:
- RTB2002 - RTB-B221 - 100 MHz bandwidth upgrade for R&S RTB2002
- RTB2004 - RTB-B241 - 100 MHz bandwidth upgrade for R&S RTB2004
- RTB2002 - RTB-B222 - 200 MHz bandwidth upgrade for R&S RTB2002
- RTB2004 - RTB-B242 - 200 MHz bandwidth upgrade for R&S RTB2004
- RTB2002 - RTB-B223 - 300 MHz bandwidth upgrade for R&S RTB2002
- RTB2004 - RTB-B243 - 300 MHz bandwidth upgrade for R&S RTB2004
- RTB2000 - RTB-K1 - Triggering and decoding: I2C/SPI
- RTB2000 - RTB-K2 - Triggering and decoding: UART/RS-232/422/485
- RTB2000 - RTB-K3 - Triggering and decoding: CAN/LIN
- RTB2000 - RTB-15 - History and segmented memory
- RTB2000 - RTB-B1 - Mixed signal upgrade for non-MSO models, 250 MHz
- RTB2000 - RTB-B6 - Arbitrary waveform generator
| Model | RTB2000 |
|---|
The Rohde & Schwarz RTB2000 Series Oscilloscope features a 10-bit ADC, 10 Msample memory, and a 10.1'' touchscreen, providing up to 300 MHz bandwidth, 1.25 GSa/s sampling rate per channel, and up to 160 Mpts segmented memory.
Ideal for embedded design debugging, university labs, and production environments, it also functions as a logic analyzer, protocol analyzer, waveform generator, and digital voltmeter.
Testwall can supply the used Rohde & Schwarz RTB2000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTB2000.
