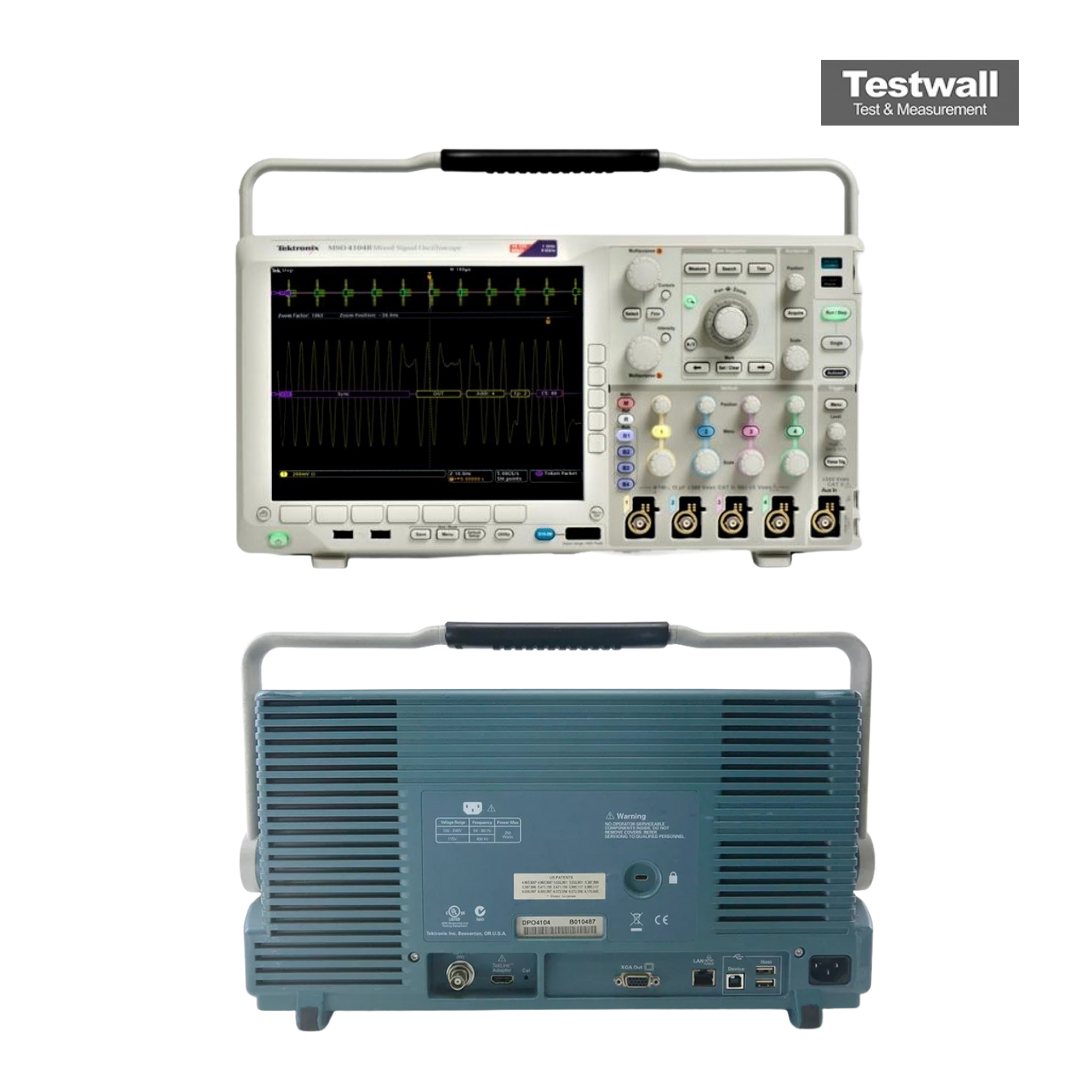

Tektronix DPO4104B
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 20 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 350 ps |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4 inch WVGA color display |
| Waveform Capture Rate | Up to 340,000 waveforms per second |
| Connectivity | USB, Ethernet, CompactFlash |
Tektronix DPO4104B Options:
Options available for the Tektronix DPO/MSO4000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO4104B - DPO4AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- DPO4104B - DPO4AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- DPO4104B - DPO4AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DPO4104B - DPO4AUTOMAX - Extended automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO4104B - DPO4COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO4104B - DPO4EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO4104B - DPO4ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- DPO4104B - DPO4USB - USB 2.0 serial triggering and analysis
- DPO4104B - DPO4LMT - Limit and mask testing
- DPO4104B - DPO4PWR - Power measurement and analysis
- DPO4104B - DPO4VID - Extended video triggering
- DPO4104B - DPO4BND - Application bundle (all DPO4 serial, power, limit/mask and video modules)
The Tektronix DPO4104B Digital Phosphor Oscilloscope features a 10.4-inch XGA display, 41 automated measurements, FFT analysis, and optional serial protocol support. It offers Wave Inspector® controls, TekVPI® probe interface, deep memory, and advanced triggering capabilities. Its USB and Ethernet connectivity enable seamless data handling and device integration.
Ideal for complex signal analysis, it captures analog and digital signals across multiple channels, with features for power analysis, video testing, and limit mask verification.
Testwall can supply the used Tektronix DPO4104B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO4104B.
