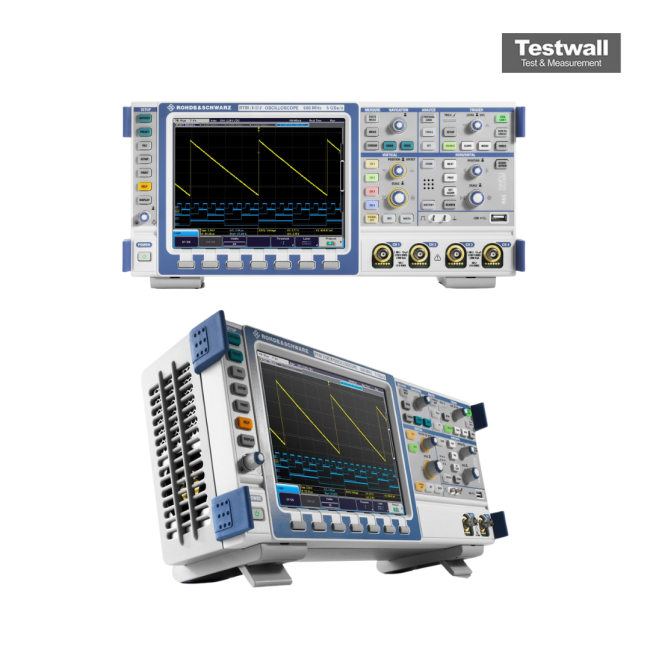

Rohde & Schwarz RTM2022 Digital Oscilloscope
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 Gsample/s |
| Memory Depth | 20 Mpoints per channel |
| Vertical Resolution | 10-bit ADC |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Time Base Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ || 13 pF |
| Waveform Update Rate | Up to 50,000 waveforms per second |
| Connectivity & Interface | USB, Ethernet (LAN), USB Device (for PC control) |
Rohde & Schwarz RTM2022 Digital Oscilloscope Options:
- RTM2022 - RTM-B1 - Mixed Signal Option, 400 MHz
- RTM2022 - RTM-B10 - GPIB Interface
- RTM2022 - RTM-B200 - Bandwidth Upgrade from 350 MHz to 500 MHz
- RTM2022 - RTM-K1 - I2C/SPI Serial Triggering and Decoding
- RTM2022 - RTM-K2 - UART/RS-232 Serial Triggering and Decoding
- RTM2022 - RTM-K3 - CAN/LIN Serial Triggering and Decoding
- RTM2022 - RTM-K5 - I2S/LJ/RJ/TDM Serial Triggering and Decoding
- RTM2022 - RTM-K6 - MIL-1553 Serial Triggering and Decoding
- RTM2022 - RTM-K15 - History and Segmented Memory
- RTM2022 - RTM-K31 - Power Analysis
| Model | RTM2022 |
|---|
The Rohde & Schwarz RTM2022 Digital Oscilloscope features 200 MHz bandwidth, 2 analog channels, and a high sampling rate of 5 GS/s. With a memory depth of 20 Mpts and embedded operating system, this benchtop oscilloscope ensures precise waveform analysis and signal clarity in various testing environments.
Ideal for debugging and signal integrity checks, the RTM2022 offers robust data capture and visualization capabilities for engineers and technicians.
Testwall can supply the used Rohde & Schwarz RTM2022 Digital Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTM2022 Digital Oscilloscope.
