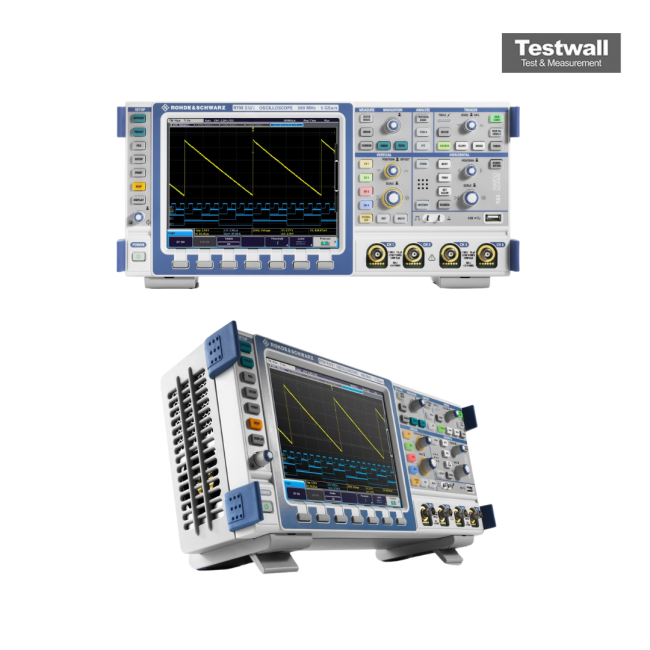

Rohde & Schwarz RTM2024 Digital Oscilloscope
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 2 Gsample/s (single channel), 1 Gsample/s (all channels) |
| Memory Depth | 20 Mpoints (standard), 40 Mpoints (optional) |
| Vertical Resolution | 10 bits (standard), up to 16 bits (high definition mode) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels (WXGA) |
| Time Base Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ || 13 pF / 50 Ω (optional) |
| Logic Channels | 16 Digital Channels (with optional MSO upgrade) |
| Connectivity & Interfaces | USB, LAN (LXI), HDMI output, USB device port for remote control |
Rohde & Schwarz RTM2024 Digital Oscilloscope Options:
- RTM2024 - RTM-B1 - Mixed Signal Option, 400 MHz
- RTM2024 - RTM-B10 - GPIB Interface
- RTM2024 - RTM-B200 - Bandwidth Upgrade from 350 MHz to 500 MHz
- RTM2024 - RTM-K1 - I2C/SPI Serial Triggering and Decoding
- RTM2024 - RTM-K2 - UART/RS-232 Serial Triggering and Decoding
- RTM2024 - RTM-K3 - CAN/LIN Serial Triggering and Decoding
- RTM2024 - RTM-K5 - I2S/LJ/RJ/TDM Serial Triggering and Decoding
- RTM2024 - RTM-K6 - MIL-1553 Serial Triggering and Decoding
- RTM2024 - RTM-K15 - History and Segmented Memory
- RTM2024 - RTM-K31 - Power Analysis
| Model | RTM2024 |
|---|
The Rohde & Schwarz RTM2024 Digital Oscilloscope features 4 channels with 200 MHz bandwidth, 2.5 Gsample/s sampling rate (5 Gsample/s on half channels), and 10 Msample memory (up to 20 Msample). With 8-bit resolution expandable to 16-bit, and automatic measurements including peak, RMS, and frequency, it is suited for advanced electronic testing. Inputs support 50 Ω ±1.5% and 1 MΩ ±1% configurations.
The RTM2024 includes an 8.4″ XGA TFT display, USB and LAN connectivity, and supports optional features like MSO logic analyzer, spectrum analyzer (K18), and power analysis (K31).
Testwall can supply the used Rohde & Schwarz RTM2024 Digital Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTM2024 Digital Oscilloscope.
