Rohde & Schwarz

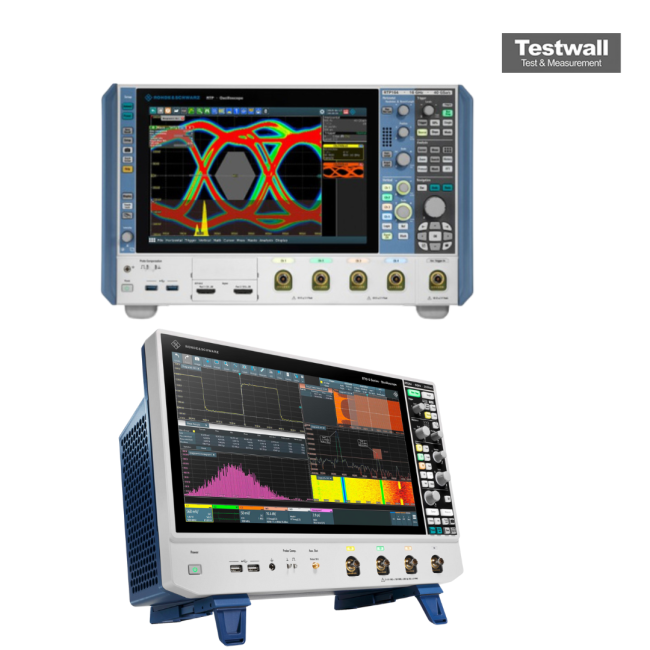

Rohde & Schwarz RTO64
4 Channel Max 6GHz 20GS/s Digitising Scope
4 GHz Bandwidth
4 Number of Channels
20 Gsample/s (single channel), 10 Gsample/s (all channels) Maximum Sample Rate
8 bit (up to 16 bit with HD mode) Vertical Resolution
Up to 2 Gsample (optional) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Number of Channels | 4 |
| Maximum Sample Rate | 20 Gsample/s (single channel), 10 Gsample/s (all channels) |
| Vertical Resolution | 8 bit (up to 16 bit with HD mode) |
| Memory Depth | Up to 2 Gsample (optional) |
| Rise Time | 116 ps |
| Input Impedance | 50 Ω / 1 MΩ |
| Display | 12.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Waveform Update Rate | Up to 1,000,000 waveforms/s |
| Connectivity | USB, LAN (LXI), HDMI, optional GPIB |
Rohde & Schwarz RTO64 4 Channel Max 6GHz 20GS/s Digitising Scope Options:
- RTO64 - B1 - Mixed Signal Option
- RTO64 - B10 - Gpib Interface
- RTO64 - B104 - 400 Mpoints Per Channel Memory Upgrade
- RTO64 - B110 - 1 Gpoints Per Channel Memory Upgrade
- RTO64 - B19 - Additional Solid State Disk
- RTO64 - B1E - Digital Extension Port
- RTO64 - B6 - Arbitrary Waveform Generator
- RTO64 - B7 - Differential Pulse Output
- RTO64 - B90 - 600 MHZ Bandwidth
- RTO64 - B91 - 1 GHZ Bandwidth
- RTO64 - B92 - 2 GHZ Bandwidth
- RTO64 - B93 - 3 GHZ Bandwidth
- RTO64 - B94 - 4 GHZ Bandwidth
- RTO64 - B96 - 6 GHZ Bandwidth
- RTO64 - K11 - I/Q Software Interface
- RTO64 - K12 - Jitter Analysis
- RTO64 - K121 - Deembedding Base Option
- RTO64 - K13 - Clock Data Recovery
- RTO64 - K130 - Tdr/Tdt Analysis
- RTO64 - K133 - Advanced Jitter Analysis
- RTO64 - K134 - Advanced Noise Analysis
- RTO64 - K31 - Power Analysis
- RTO64 - K37 - Spectrum Analysis
| Model | RTO64 |
|---|
The Rohde & Schwarz RTO64 is a 4-channel digitizing oscilloscope offering a bandwidth up to 6GHz and a sampling rate of 20GS/s. It provides ultra-low noise and high signal fidelity with precise measurements, ideal for complex debug and analysis tasks.
With its advanced trigger system and deep memory, the RTO64 is suited for debugging high-speed digital and RF designs. Its intuitive touchscreen and smart GUI improve user productivity.
Testwall can supply the used Rohde & Schwarz RTO64, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTO64.
