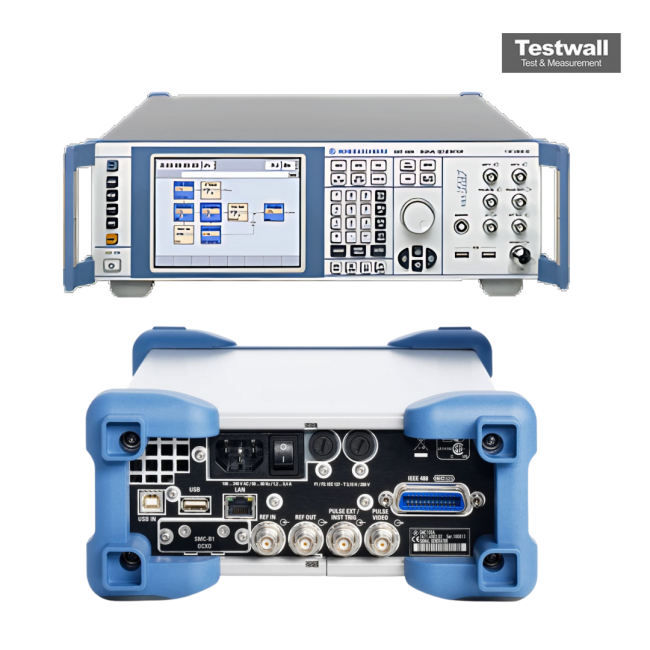

Rohde & Schwarz SMA100A-B103
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz (Opt. B103) |
| Frequency Resolution | 0.01 Hz |
| Harmonics | < -30 dBc |
| Switching Speed | < 1.5 ms; < 450 µs list mode |
| RF Output Connector | Type-N female |
| Output Power | -145 to +18 dBm (+15 dBm with Opt. B106), up to +28 dBm high power |
| SSB Phase Noise | < -131 dBc/Hz (-134 dBc/Hz typ.) at 1 GHz, 20 kHz offset; < -136 dBc/Hz with Opt. B22 |
| Modulation | AM, FM, ΦM (Opt. B20/B22), pulse |
| Level Accuracy | < 0.5 dB (100 kHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Non-Harmonics | < -80 dBc (to 1.5 GHz), < -68 dBc (> 3 GHz), offset > 10 kHz |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 10 MHz, ≤ 1 × 10⁻⁷ per year (≤ 3 × 10⁻⁸ with Opt. B22) |
| Interfaces | GPIB, LAN, USB |
| Display | color, 480 × 272 pixels |
| Dimensions | 465 × 108 × 495 mm |
| Weight | 10 kg |
Rohde & Schwarz SMA100A-B103 3 GHz Analog Signal Generator, Type N (f) Options:
- SMA100A-B103 - SMA-B103 - 9 kHz to 3 GHz with electronic attenuator
- SMA100A-B103 - SMA-B103L - 9 kHz to 3 GHz without attenuator
- SMA100A-B103 - SMA-B20 - FM/φM Modulator
- SMA100A-B103 - SMA-B22 - Enhanced Phase Noise Performance and FM/φM Modulator
- SMA100A-B103 - SMA-B29 - Clock Synthesizer
- SMA100A-B103 - SMA-B80 - Removable Mass Storage (compact flash disk)
- SMA100A-B103 - SMA-B81 - Rear Connectors
- SMA100A-B103 - SMA-K23 - High-Performance Pulse Generator
- SMA100A-B103 - SMA-K24 - Multifunction Generator
The Rohde & Schwarz SMA100A-B103 is a high-performance analog signal generator offering a frequency range from 9 kHz to 3.2 GHz. It delivers CW signals and supports analog modulations such as AM, FM, φM, and pulse, making it ideal for development, production, and maintenance. It features an I/Q modulator with 528 MHz bandwidth, low-jitter clock synthesis up to 1.5 GHz, and compatibility with digital standards like LTE, 3GPP, GSM, WLAN, and GNSS systems.
With a <3 ms setting time and optional ARB-based baseband generator, it ensures high-speed operation and cost-efficient performance across RF and I/Q modes. Aerospace-ready and service-friendly.
Testwall can supply the used Rohde & Schwarz SMA100A-B103, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMA100A-B103.
