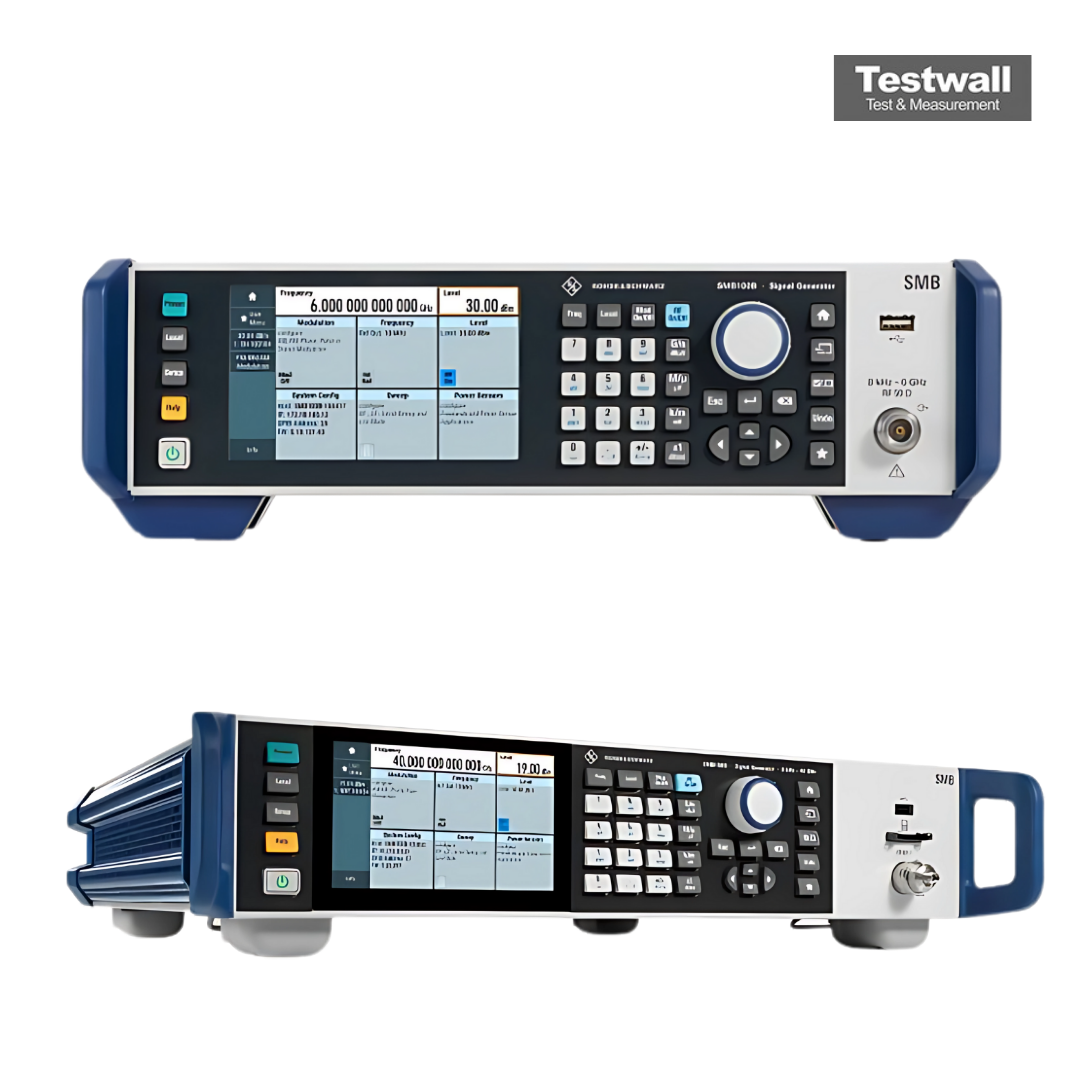

Rohde & Schwarz SMB100B-B101
1 GHz Analog Signal Generator
0.001 Hz Frequency Resolution
LAN, USB, GPIB (Opt. B86/K986) Interfaces
5" color touchscreen Display
8 kHz to 1 GHz (Opt. B101) Frequency Range
-145 to +18 dBm (to 6 GHz; +21 dBm with Opt. K31, +26 dBm with Opt. B32); +16 dBm at 20 GHz; +13 dBm at 40 GHz Output Power
| Attribute | Value |
|---|---|
| Frequency Resolution | 0.001 Hz |
| Interfaces | LAN, USB, GPIB (Opt. B86/K986) |
| Display | 5" color touchscreen |
| Frequency Range | 8 kHz to 1 GHz (Opt. B101) |
| Output Power | -145 to +18 dBm (to 6 GHz; +21 dBm with Opt. K31, +26 dBm with Opt. B32); +16 dBm at 20 GHz; +13 dBm at 40 GHz |
| SSB Phase Noise | < -126 dBc/Hz (-132 dBc/Hz typ.) at 1 GHz, 20 kHz offset |
| Modulation | AM, FM, ΦM (Opt. K720), pulse (Opt. K22) |
| Level Accuracy | < 0.5 dB (200 kHz to 3 GHz), < 0.7 dB (3 to 6 GHz), < 0.9 dB (to 20 GHz), < 1.0 dB (> 20 GHz) |
| Harmonics | < -30 dBc (to 6 GHz); < -55 dBc (2 to 40 GHz, Opt. B112 to B140) |
| Non-Harmonics | < -86 dBc (to 750 MHz), < -70 dBc (3 to 6 GHz), < -52 dBc (24 to 40 GHz), offset > 10 kHz |
| Switching Speed | < 1.5 ms (to 6 GHz), < 2.2 ms (to 20 GHz), < 2.5 ms (to 40 GHz) |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 10 MHz, ≤ 1 × 10⁻⁶ per year (≤ 3 × 10⁻⁸ with Opt. B1H) |
| RF Output Connector | Type-N female (to 6 GHz), 2.92 mm female (Opt. B112 to B140) |
| Dimensions | 344 × 108 × 372 mm (to 6 GHz), 460 × 107 × 503 mm (Opt. B112 to B140) |
| Weight | 6.8 kg (to 6 GHz), 10.7 kg (Opt. B112 to B140) |
Rohde & Schwarz SMB100B Options:
- SMB100B - SMBB-B101 - Frequency Option 8 kHz to 1 GHz
- SMB100B - SMBB-B103 - Frequency Option 8 kHz to 3 GHz
- SMB100B - SMBB-B106 - Frequency Option 8 kHz to 6 GHz
- SMB100B - SMBB-B1 - OCXO Reference Oscillator
- SMB100B - SMBB-B1H - OCXO Reference Oscillator, High Performance
- SMB100B - SMBB-B3 - 100 MHz, 1 GHz Ultra Low Noise Reference Input and Output
- SMB100B - SMBB-K704 - Flexible Reference Input from 1 MHz to 100 MHz
- SMB100B - SMBB-K31 - High Output Power 1/3/6 GHz
- SMB100B - SMBB-B32 - Ultra High Output Power 1/3/6 GHz
- SMB100B - SMBB-K22 - High Performance Pulse Modulator
- SMB100B - SMBB-K23 - Pulse Generator
- SMB100B - SMBB-K24 - Multifunction Generator
- SMB100B - SMBB-K27 - Pulse Train
- SMB100B - SMBB-K720 - AM / FM / φM Analog Modulation
- SMB100B - SMBB-B5 - Stereo/RDS Coder
- SMB100B - SMBB-B86 - Remote Control Interface (GPIB and USB)

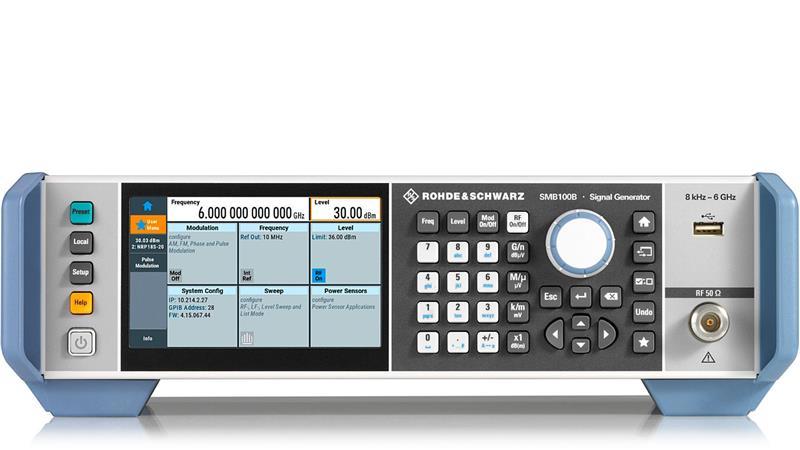

The Rohde & Schwarz SMB100B-B101 is the SMB100B analog signal generator fitted with frequency option B101, covering 8 kHz to 1 GHz. It offers very high output power, low phase noise and wideband noise, and a 5-inch touchscreen, making it well suited to R&D, production and service. RF output on a Type-N female connector.
Testwall can supply the used Rohde & Schwarz SMB100B-B101, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMB100B-B101.
