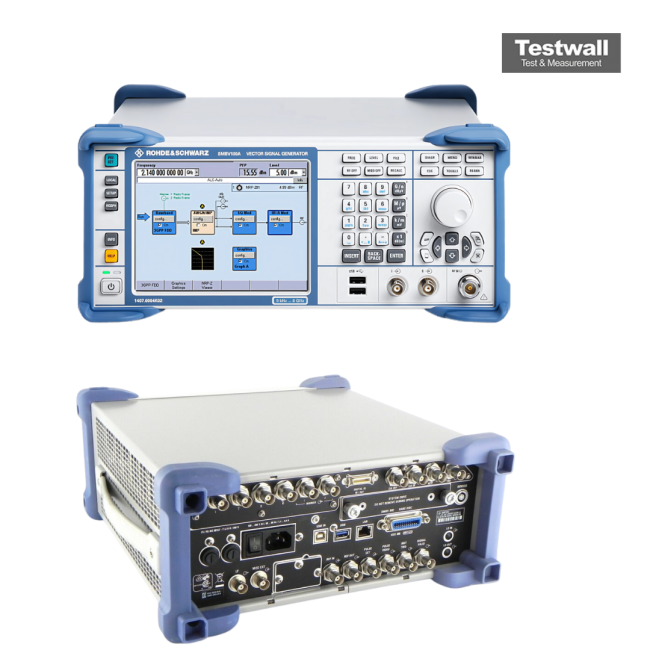

Rohde & Schwarz SMBV100A-B106
6 GHz Vector Signal Generator
9 kHz to 6 GHz (Opt. B106) Frequency Range
0.001 Hz Frequency Resolution
< -30 dBc (level ≤ 8 dBm) Harmonics
< 1.5 ms (CW), < 3 ms (I/Q) Switching Speed
Type-N female, front panel RF Output Connector
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz (Opt. B106) |
| Frequency Resolution | 0.001 Hz |
| Harmonics | < -30 dBc (level ≤ 8 dBm) |
| Switching Speed | < 1.5 ms (CW), < 3 ms (I/Q) |
| RF Output Connector | Type-N female, front panel |
| Output Power | -120 to +18 dBm (PEP, spec.); setting range -145 to +30 dBm |
| SSB Phase Noise | < -122 dBc/Hz at 1 GHz, 20 kHz offset (-128 typ.) |
| Modulation | AM, FM, ΦM, pulse (Opt. K22), I/Q |
| Level Accuracy | < 0.5 dB (200 kHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Non-Harmonics | < -70 dBc (≤ 1.5 GHz), < -64 dBc (1.5 to 3 GHz), < -58 dBc (> 3 GHz) |
| Modulation Bandwidth | 120 MHz (Opt. B10/B10F), 160 MHz (Opt. K522), 60 MHz (Opt. B51) |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁷ per year (Opt. B1), 3 × 10⁻⁸ per year (Opt. B1H) |
| Interfaces | GPIB, LAN, USB, RS-232 |
| Dimensions | 344 × 155 × 368 mm |
| Weight | 7.9 kg |
Rohde & Schwarz SMBV100A-B106 Options:
- SMBV100A-B106 - B103 - RF 9 kHz to 3.2 GHz
- SMBV100A-B106 - B106 - RF 9 kHz to 6 GHz
- SMBV100A-B106 - B1 - Reference Oscillator OCXO
- SMBV100A-B106 - B90 - Phase Coherence
- SMBV100A-B106 - K22 - Pulse Modulator
- SMBV100A-B106 - K23 - Pulse Generator
- SMBV100A-B106 - B10 - Baseband Generator with Digital Modulation (realtime) and ARB (32 Msample), 120 MHz RF bandwidth
- SMBV100A-B106 - B50 - Baseband Generator with ARB (32 Msample), 120 MHz RF bandwidth
- SMBV100A-B106 - B51 - Baseband Generator with ARB (32 Msample), 60 MHz RF bandwidth
- SMBV100A-B106 - B55 - Memory Extension for ARB to 256 Msample
- SMBV100A-B106 - B92 - Hard Disc (removable)
- SMBV100A-B106 - K18 - Digital Baseband Connectivity
- SMBV100A-B106 - K40 - Digital Standard GSM/EDGE
- SMBV100A-B106 - K42 - Digital Standard 3GPP FDD
- SMBV100A-B106 - K43 - 3GPP FDD Enhanced MS/BS Tests incl. HSDPA
- SMBV100A-B106 - K45 - 3GPP FDD HSUPA
- SMBV100A-B106 - K46 - Digital Standard CDMA2000® incl. 1x EV-DV
- SMBV100A-B106 - K47 - Digital Standard 1xEV-DO Rev. A
- SMBV100A-B106 - K48 - Digital Standard IEEE 802.11 (a/b/g)
- SMBV100A-B106 - K49 - Digital Standard IEEE 802.16
- SMBV100A-B106 - K50 - Digital Standard TD-SCDMA
- SMBV100A-B106 - K51 - TD-SCDMA Enhanced BS/MS Tests
- SMBV100A-B106 - K52 - Digital Standard DVB-H/DVB-T
- SMBV100A-B106 - K54 - Digital Standard IEEE 802.11n
- SMBV100A-B106 - K55 - Digital Standard EUTRA/LTE
- SMBV100A-B106 - K59 - Digital Standard HSPA+
- SMBV100A-B106 - K61 - Multicarrier CW Signal Generation
- SMBV100A-B106 - K62 - Additive White Gaussian Noise (AWGN)
- SMBV100A-B106 - K6 - Pulse Sequencer (external PC software)
- SMBV100A-B106 - K240 - Digital Standard GSM/EDGE (WinIQSIM2™)
- SMBV100A-B106 - K242 - Digital Standard 3GPP FDD (WinIQSIM2™)
- SMBV100A-B106 - K243 - 3GPP FDD Enhanced MS/BS Tests incl. HSDPA (WinIQSIM2™)
- SMBV100A-B106 - K244 - Digital Standard GPS (WinIQSIM2™)
- SMBV100A-B106 - K245 - 3GPP FDD HSUPA (WinIQSIM2™)
- SMBV100A-B106 - K246 - Digital Standard CDMA2000® incl. 1x EV-DV (WinIQSIM2™)
- SMBV100A-B106 - K247 - Digital Standard 1xEV-DO Rev. A (WinIQSIM2™)
- SMBV100A-B106 - K248 - Digital Standard IEEE 802.11 (a/b/g) (WinIQSIM2™)
- SMBV100A-B106 - K249 - Digital Standard IEEE 802.16 (WinIQSIM2™)
- SMBV100A-B106 - K250 - Digital Standard TD-SCDMA (WinIQSIM2™)
- SMBV100A-B106 - K251 - TD-SCDMA Enhanced BS/MS Tests (WinIQSIM2™)
- SMBV100A-B106 - K252 - Digital Standard DVB-H (WinIQSIM2™)
- SMBV100A-B106 - K254 - Digital Standard IEEE 802.11n (WinIQSIM2™)
- SMBV100A-B106 - K255 - Digital Standard EUTRA/LTE (WinIQSIM2™)
- SMBV100A-B106 - K259 - Digital Standard HSPA+ (WinIQSIM2™)
- SMBV100A-B106 - K261 - Multicarrier CW Signal Generation (WinIQSIM2™)
- SMBV100A-B106 - K262 - Additive White Gaussian Noise (AWGN) (WinIQSIM2™)
- SMBV100A-B106 - K256 - Playback of XM Radio Waveforms
- SMBV100A-B106 - K352 - Playback of HD Radio™ Waveforms
The Rohde & Schwarz SMBV100A-B106 Vector Signal Generator delivers high output levels up to 6 GHz and supports a wide signal bandwidth of up to 120 MHz internally. It features an I/Q modulator with over 500 MHz RF bandwidth, integrated ARB for waveform playback, and baseband coder with real-time capabilities. It's compatible with all major digital standards and supports GPS, Glonass, Galileo, BeiDou, and QZSS for GNSS simulation.
This unit is ideal for mobile radio, WLAN, aerospace, and defense applications, offering fast settling times, low EVM, and analog modulation. With flexible baseband options and high performance, it suits production and advanced R&D testing.
Testwall can supply the used Rohde & Schwarz SMBV100A-B106, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMBV100A-B106.
