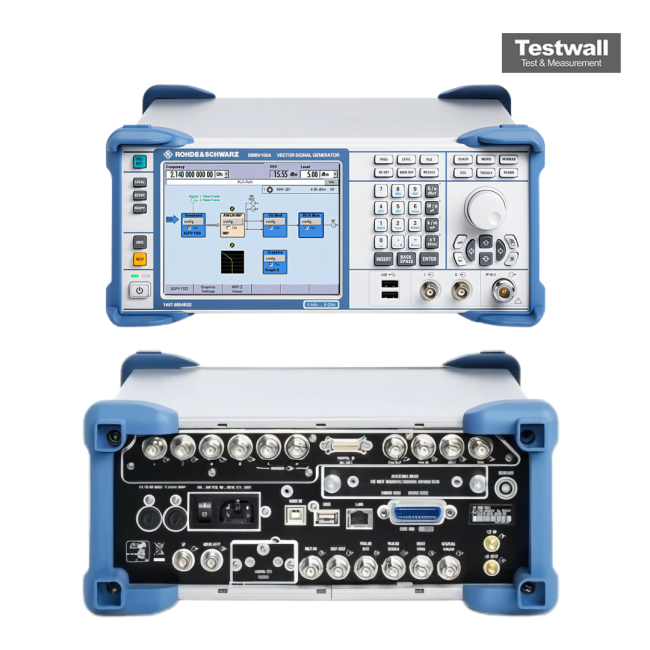

Rohde & Schwarz SMBV100A-B103
3 GHz Vector Signal Generator
9 kHz to 3.2 GHz (Opt. B103) Frequency Range
0.001 Hz Frequency Resolution
< -30 dBc (level ≤ 8 dBm) Harmonics
< 1.5 ms (CW), < 3 ms (I/Q) Switching Speed
Type-N female, front panel RF Output Connector
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3.2 GHz (Opt. B103) |
| Frequency Resolution | 0.001 Hz |
| Harmonics | < -30 dBc (level ≤ 8 dBm) |
| Switching Speed | < 1.5 ms (CW), < 3 ms (I/Q) |
| RF Output Connector | Type-N female, front panel |
| Output Power | -120 to +18 dBm (PEP, spec.); setting range -145 to +30 dBm |
| SSB Phase Noise | < -122 dBc/Hz at 1 GHz, 20 kHz offset (-128 typ.) |
| Modulation | AM, FM, ΦM, pulse (Opt. K22), I/Q |
| Level Accuracy | < 0.5 dB (200 kHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Non-Harmonics | < -70 dBc (≤ 1.5 GHz), < -64 dBc (1.5 to 3 GHz), < -58 dBc (> 3 GHz) |
| Modulation Bandwidth | 120 MHz (Opt. B10/B10F), 160 MHz (Opt. K522), 60 MHz (Opt. B51) |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁷ per year (Opt. B1), 3 × 10⁻⁸ per year (Opt. B1H) |
| Interfaces | GPIB, LAN, USB, RS-232 |
| Dimensions | 344 × 155 × 368 mm |
| Weight | 7.9 kg |
Rohde & Schwarz SMBV100A-B103 Options:
- SMBV100A-B103 - B103 - RF 9 kHz to 3.2 GHz
- SMBV100A-B103 - B106 - RF 9 kHz to 6 GHz
- SMBV100A-B103 - B1 - Reference Oscillator OCXO
- SMBV100A-B103 - B90 - Phase Coherence
- SMBV100A-B103 - K22 - Pulse Modulator
- SMBV100A-B103 - K23 - Pulse Generator
- SMBV100A-B103 - B10 - Baseband Generator with Digital Modulation (realtime) and ARB (32 Msample), 120 MHz RF bandwidth
- SMBV100A-B103 - B50 - Baseband Generator with ARB (32 Msample), 120 MHz RF bandwidth
- SMBV100A-B103 - B51 - Baseband Generator with ARB (32 Msample), 60 MHz RF bandwidth
- SMBV100A-B103 - B55 - Memory Extension for ARB to 256 Msample
- SMBV100A-B103 - B92 - Hard Disc (removable)
- SMBV100A-B103 - K18 - Digital Baseband Connectivity
- SMBV100A-B103 - K40 - Digital Standard GSM/EDGE
- SMBV100A-B103 - K42 - Digital Standard 3GPP FDD
- SMBV100A-B103 - K43 - 3GPP FDD Enhanced MS/BS Tests incl. HSDPA
- SMBV100A-B103 - K45 - 3GPP FDD HSUPA
- SMBV100A-B103 - K46 - Digital Standard CDMA2000 incl. 1x EV-DV
- SMBV100A-B103 - K47 - Digital Standard 1xEV-DO Rev. A
- SMBV100A-B103 - K48 - Digital Standard IEEE 802.11 (a/b/g)
- SMBV100A-B103 - K49 - Digital Standard IEEE 802.16
- SMBV100A-B103 - K50 - Digital Standard TD-SCDMA
- SMBV100A-B103 - K51 - TD-SCDMA Enhanced BS/MS Tests
- SMBV100A-B103 - K52 - Digital Standard DVB-H/DVB-T
- SMBV100A-B103 - K54 - Digital Standard IEEE 802.11n
- SMBV100A-B103 - K55 - Digital Standard EUTRA/LTE
- SMBV100A-B103 - K59 - Digital Standard HSPA+
- SMBV100A-B103 - K61 - Multicarrier CW Signal Generation
- SMBV100A-B103 - K62 - Additive White Gaussian Noise (AWGN)
- SMBV100A-B103 - K6 - Pulse Sequencer (external PC software)
- SMBV100A-B103 - K240 - Digital Standard GSM/EDGE (WinIQSIM2)
- SMBV100A-B103 - K242 - Digital Standard 3GPP FDD (WinIQSIM2)
- SMBV100A-B103 - K243 - 3GPP FDD Enhanced MS/BS Tests incl. HSDPA (WinIQSIM2)
- SMBV100A-B103 - K244 - Digital Standard GPS (WinIQSIM2)
- SMBV100A-B103 - K245 - 3GPP FDD HSUPA (WinIQSIM2)
- SMBV100A-B103 - K246 - Digital Standard CDMA2000 incl. 1x EV-DV (WinIQSIM2)
- SMBV100A-B103 - K247 - Digital Standard 1xEV-DO Rev. A (WinIQSIM2)
- SMBV100A-B103 - K248 - Digital Standard IEEE 802.11 (a/b/g) (WinIQSIM2)
- SMBV100A-B103 - K249 - Digital Standard IEEE 802.16 (WinIQSIM2)
- SMBV100A-B103 - K250 - Digital Standard TD-SCDMA (WinIQSIM2)
- SMBV100A-B103 - K251 - TD-SCDMA Enhanced BS/MS Tests (WinIQSIM2)
- SMBV100A-B103 - K252 - Digital Standard DVB-H (WinIQSIM2)
- SMBV100A-B103 - K254 - Digital Standard IEEE 802.11n (WinIQSIM2)
- SMBV100A-B103 - K255 - Digital Standard EUTRA/LTE (WinIQSIM2)
- SMBV100A-B103 - K259 - Digital Standard HSPA+ (WinIQSIM2)
- SMBV100A-B103 - K261 - Multicarrier CW Signal Generation (WinIQSIM2)
- SMBV100A-B103 - K262 - Additive White Gaussian Noise AWGN (WinIQSIM2)
- SMBV100A-B103 - K256 - Playback of XM Radio Waveforms
- SMBV100A-B103 - K352 - Playback of HD Radio Waveforms
The Rohde & Schwarz SMBV100A-B103 features a fully digital baseband section and I/Q modulator for precise vector signal generation across 9 kHz to 3.2 GHz.
