Rohde & Schwarz SMC100A-B103
3.2 GHz Analog Signal Generator
AM, FM, ΦM, pulse Modulation
< 0.9 dB Level Accuracy
0.001 Hz Frequency Resolution
< -60 dBc (-72 dBc typ.) Non-Harmonics
LAN, USB, GPIB (Opt. K4) Interfaces
| Attribute | Value |
|---|---|
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | < 0.9 dB |
| Frequency Resolution | 0.001 Hz |
| Non-Harmonics | < -60 dBc (-72 dBc typ.) |
| Interfaces | LAN, USB, GPIB (Opt. K4) |
| Frequency Range | 9 kHz to 3.2 GHz (Opt. B103) |
| Output Power | -120 to +13 dBm (spec.), > +17 dBm (typ.) |
| SSB Phase Noise | < -105 dBc/Hz (-111 dBc/Hz typ.) at 1 GHz, 20 kHz offset |
Rohde & Schwarz SMC100A Options:
- SMC100A - SMC-B101 - RF Path 9 kHz to 1.1 GHz
- SMC100A - SMC-B103 - RF Path 9 kHz to 3.2 GHz
- SMC100A - SMC-B1 - Reference Oscillator OCXO
- SMC100A - SMC-K4 - GPIB/IEEE488 Interface
- SMC100A - DCV-2 - Documentation of Calibration Values
- SMC100A - SMC-DKD - DKD (ISO 17025) Calibration including ISO 9000 calibration (can only be ordered with the device)

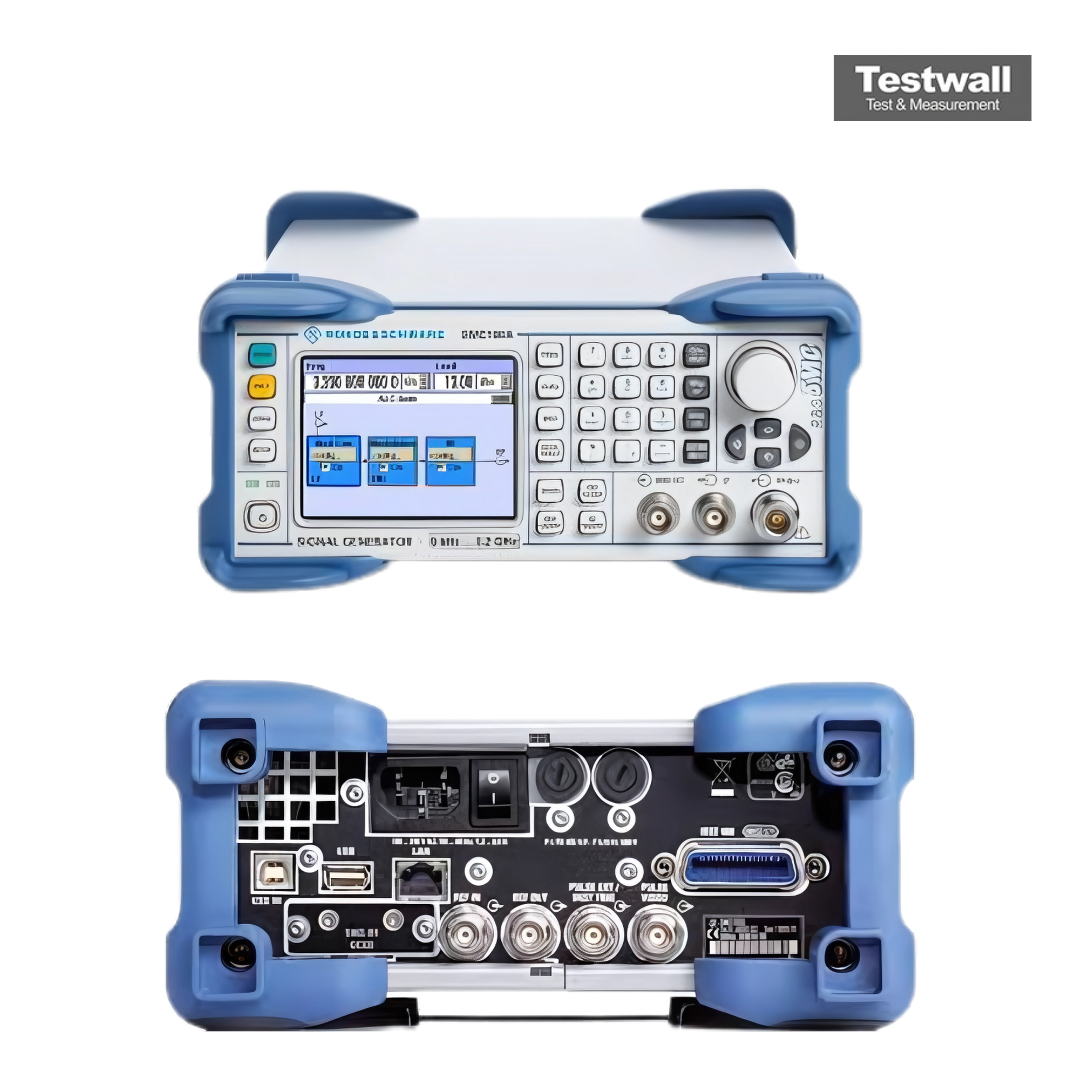

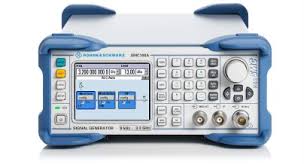

The Rohde & Schwarz SMC100A-B103 is the SMC100A analog signal generator fitted with frequency option B103, covering 9 kHz to 3.2 GHz. This compact, cost-effective generator has AM, FM, phase and pulse modulation as standard and is ideal for service, training and production. RF output on a Type-N female connector.
Testwall can supply the used Rohde & Schwarz SMC100A-B103, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMC100A-B103.
