Rohde & Schwarz SMC100A
| Attribute | Value |
|---|---|
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | < 0.9 dB |
| Frequency Resolution | 0.001 Hz |
| Non-Harmonics | < -60 dBc (-72 dBc typ.) |
| Interfaces | LAN, USB, GPIB |
| Frequency Range | 9 kHz to 1.1 or 3.2 GHz |
| Output Power | -120 to +13 dBm (spec.), > +17 dBm (typ.) |
| SSB Phase Noise | < -105 dBc/Hz (-111 dBc/Hz typ.) at 1 GHz, 20 kHz offset |
Available configurations
| Model | Frequency range | Configuration |
| SMC100A-B101 | 9 kHz to 1.1 GHz | Analog signal generator |
| SMC100A-B103 | 9 kHz to 3.2 GHz | Analog signal generator |
Rohde & Schwarz SMC100A Options:
- SMC100A - SMC-B101 - RF Path 9 kHz to 1.1 GHz
- SMC100A - SMC-B103 - RF Path 9 kHz to 3.2 GHz
- SMC100A - SMC-B1 - Reference Oscillator OCXO
- SMC100A - SMC-K4 - GPIB/IEEE488 Interface
- SMC100A - DCV-2 - Documentation of Calibration Values
- SMC100A - SMC-DKD - DKD (ISO 17025) Calibration including ISO 9000 calibration (can only be ordered with the device)

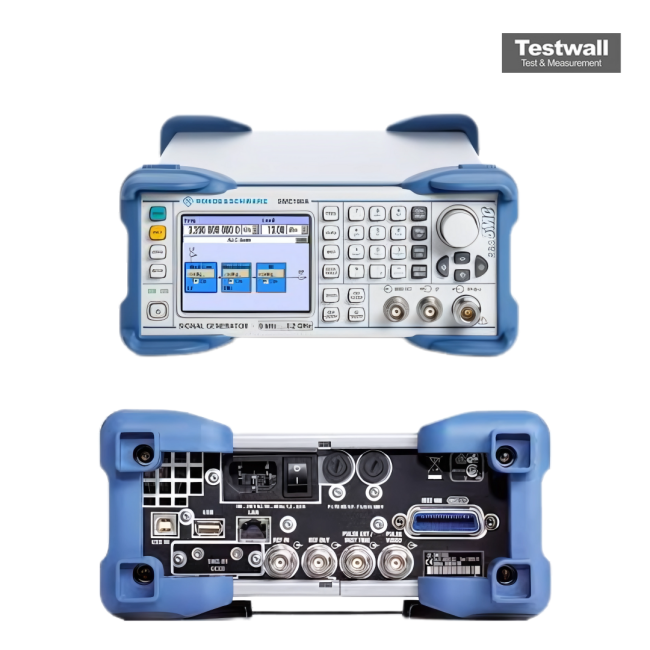

The Rohde & Schwarz SMC100A Signal Generator covers a frequency range from 9 kHz to either 1.1 GHz or 3.2 GHz, supporting AM, FM, phase, and pulse modulation. It features phase noise as low as –111 dBc at 1 GHz (20 kHz offset), and output power typically above +17 dBm. Compact and user-friendly, it integrates key functionalities into a single lightweight device.
Perfect for field use, training, or service labs, the SMC100A ensures modular maintenance, level verification via Rohde & Schwarz power sensors, and consistent signal generation with low ownership costs.
Testwall can supply the used Rohde & Schwarz SMC100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMC100A.
Options and configurations
- Interfaces: LAN, USB, GPIB (Opt. K4)
- Frequency Range: 9 kHz to 1.1 or 3.2 GHz (Opt. B101/B103)
