Rohde & Schwarz SMHU-58
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 4.32 GHz |
| Frequency Resolution | 0.1 Hz |
| Output Power Range | -144 dBm to +13 dBm |
| Output Impedance | 50 Ohm |
| RF Connector Type | N-type female |
| FM Deviation | Up to 10 MHz |
| AM Depth | 0% to 99.9% |
| Phase Noise | -116 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Model | SMHU-58 |
|---|

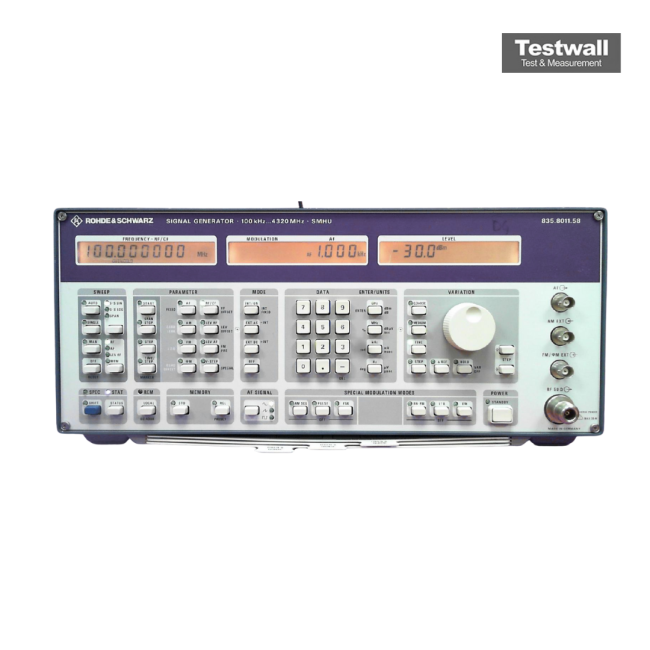

The Rohde & Schwarz SMHU58 is a 4.32GHz Synthesised Signal Generator with an additional broadband I/Q modulator, enabling it to generate complex digital modulations. It supports Software IQSIM-K for programmable waveform generation and conforms to evolving modulation standards with coder options for precise signal conformity.
Key specifications include frequency resolution of 0.1 Hz, setting time below 1 ms, broadband FM from DC to 1 MHz, drift-free FM DC for FSK applications, OCXO reference, and integrated pulse modulation.
Testwall can supply the used Rohde & Schwarz SMHU58, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMHU58.
