Rohde & Schwarz SMHU58
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 4.32 GHz |
| Output Power | up to +19 dBm |
| Switching Speed | < 1 ms |
| Modulation Bandwidth | DC to 200 MHz (I/Q) |
| Modulation | AM, FM, I/Q (PSK, QAM, ASK), GSM, DECT, CDMA |
Rohde & Schwarz SMHU58 4.32GHz Synthesised Signal Generator Options:
- SMHU58 - B2 - Gmsk Coder
- SMHU58 - B3 - Dect Coder
- SMHU58 - B4 - Nadc/Pdc Coder
- SMHU58 - B5 - Phs Coder
- SMHU58 - B6 - Qualcomm Cdma Coder
- SMHU58 - B7 - Tetra 25 Coder

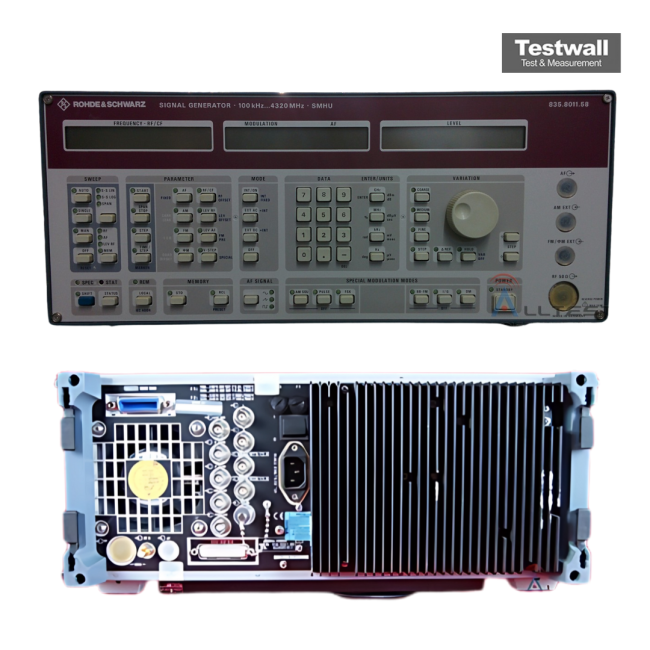

The Rohde & Schwarz SMHU58 is a 4.32 GHz synthesised signal generator featuring an additional broadband I/Q modulator, enabling extensive versatility and precise digital modulation. It offers exceptional spectral purity, ultra-fast frequency setting under 1 ms, and precise frequency resolution of 0.1 Hz. Its capabilities include RF, AF, and level sweeps, broadband FM modulation from DC to 1 MHz, and drift-free FM DC for accurate FSK applications. An integrated OCXO reference ensures outstanding frequency stability, complemented by a built-in pulse modulator for diverse testing scenarios. The SMHU58 is particularly effective for modern modulation standards, compatible with Software IQSIM-K for user-defined waveform generation and the generator ADS. Testwall can supply the used Rohde & Schwarz SMHU58, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMHU58.
Options and configurations
- Modulation: AM, FM, I/Q (PSK, QAM, ASK), GSM, DECT, CDMA (with Opt.)
