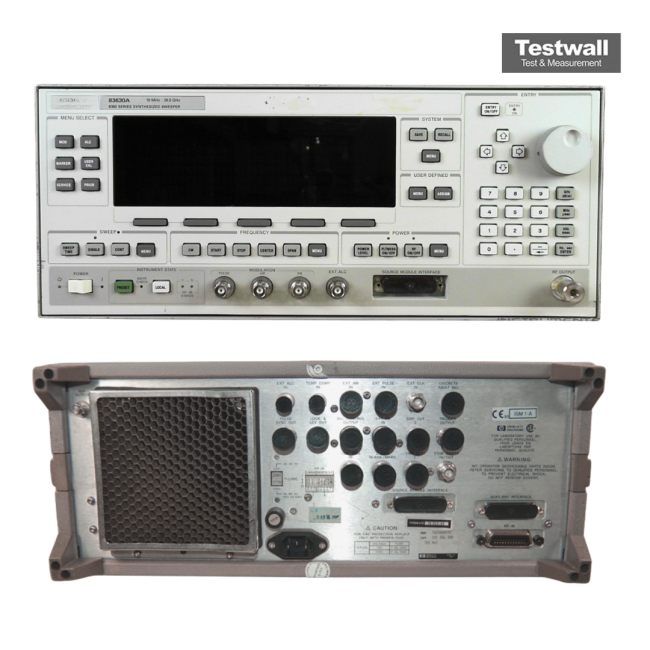

Keysight (Agilent) 83630A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Output Power Range | -20 dBm to +13 dBm (typical) |
| Frequency Resolution | 1 Hz |
| Output Connector | 2.4 mm (f) |
| Harmonic Suppression | -25 dBc (typical) |
| SSB Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Frequency Switching Speed | 15 ms (typical) |
| Interface | GPIB (IEEE-488) |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) 83630A Options:
Options available for the Keysight (Agilent) 8362x/8363x/8364x/8365x series synthesized swept-signal generators. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- 83630A - 001 - Step attenuator
- 83630A - 002 - Internal AM/FM/pulse/scan modulation generator
- 83630A - 004 - RF output moved to rear panel
- 83630A - 006 - Fast pulse modulation
- 83630A - 008 - 1 Hz frequency resolution
- 83630A - 1E5 - High-stability timebase
- 83630A - 1CM - Rack mount kit
- 83630A - 1CN - Front handle kit
- 83630A - 1CP - Rack mount kit with handles
The Keysight (Agilent) 83630A Synthesised Sweeper spans 10 MHz to 26.5 GHz, delivering 1 Hz resolution (Option 008) with low phase noise. It features harmonic suppression—50 dB below carrier (2.2–20 GHz), 35 dB below (above 20 GHz), and pulse modulation >80 dB on/off, <10 ns rise/fall (Option 006).
It supports linear AM (100%/V), scan modulation (10 dB/V), and FM up to 8 MHz, with simultaneous pulse and amplitude modulation.
Testwall can supply the used Keysight (Agilent) 83630A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83630A.
