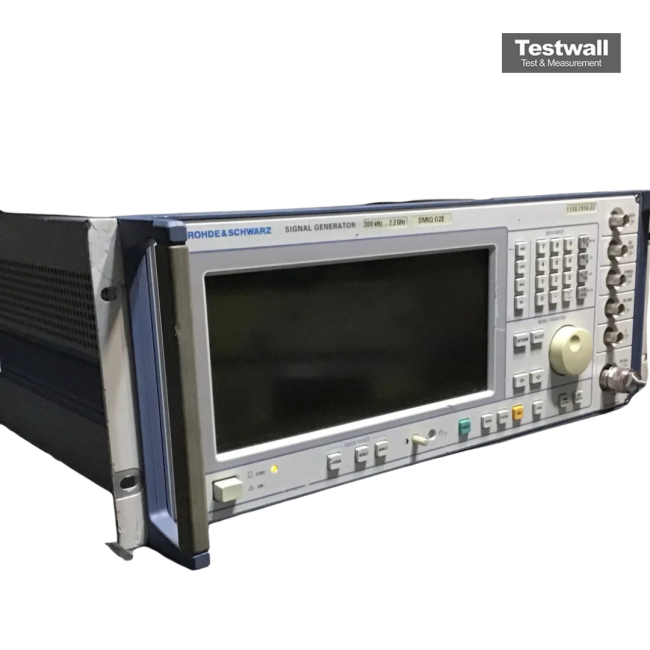

Rohde & Schwarz SMIQ02E
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 2.2 GHz |
| Output Power | -140 to +13 dBm (PEP) |
| Modulation | AM, FM, ΦM, I/Q |
| Frequency Resolution | 0.1 Hz |
| Harmonics | < -30 dBc (level ≤ 10 dBm) |
| SSB Phase Noise | < -116 dBc/Hz at 1 GHz, 20 kHz offset |
| Level Accuracy | < ±1 dB (< 2 GHz), < ±1.5 dB (> 2 GHz) |
| Modulation Bandwidth | 30 MHz (I/Q, -3 dB) |
| Timebase Aging | 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁹ per day |
| Interfaces | GPIB |
| Dimensions | 435 × 192 × 460 mm |
| Weight | 25 kg |
Rohde & Schwarz SMIQ02E Options:
- SMIQ02E - SM-B1 - Reference Oscillator OCXO
- SMIQ02E - SM-B5 - FM/φM Modulator
- SMIQ02E - SMIQB10 - Modulation Coder
- SMIQ02E - SMIQB11 - Data Generator (incl. 4 Mbit memory)
- SMIQ02E - SMIQB12 - Memory Extension 8 Mbit
- SMIQ02E - SMIQB42 - IS-95 CDMA (Digital Standard)
- SMIQ02E - SM-B50 - Fast CPU
- SMIQ02E - SMIQB19 - Rear Connectors
The Rohde & Schwarz SMIQ02E Signal Generator operates within a frequency range of 300 kHz to 2.2 GHz, offering reliable signal generation for advanced testing applications. It includes a high-performance electronic oscillator for producing consistent and accurate waveforms.
This generator is suited for communication system testing, R&D, and production environments where precision signal reproduction is essential. It ensures clean, stable outputs for dependable results.
Testwall can supply the used Rohde & Schwarz SMIQ02E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMIQ02E.
Options and configurations
- Timebase Aging: 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁹ per day (Opt. B1)
