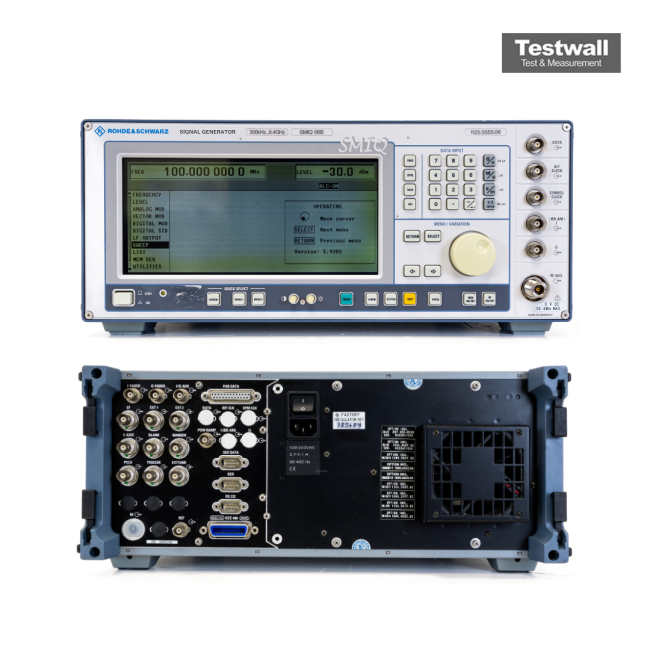

Rohde & Schwarz SMIQ06B
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 6.4 GHz |
| Output Power | -144 to +10 dBm (PEP) |
| Modulation | AM, FM, ΦM, pulse, I/Q |
| Frequency Resolution | 0.1 Hz |
| Modulation Bandwidth | 12 MHz (I/Q) |
| SSB Phase Noise | < -126 dBc/Hz at 1 GHz, 20 kHz offset |
| Level Accuracy | < 0.5 dB (to 2.5 GHz), < 0.9 dB (2.5 to 4 GHz), < 1.2 dB (4 to 6.4 GHz) |
| Switching Speed | < 3.3 ms (> 3.3 GHz); < 700 µs list mode |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁹ per day |
| Interfaces | GPIB, RS-232 |
| Dimensions | 435 × 192 × 460 mm |
| Weight | 25 kg |
Rohde & Schwarz SMIQ06B Options:
- SMIQ06B - R&S SM-B1 - Reference Oscillator OCXO
- SMIQ06B - R&S SM-B5 - FM/φM Modulator
- SMIQ06B - R&S SMIQB11 - Data Generator
- SMIQ06B - R&S SMIQB12 - Memory Extension, 32 Mbit
- SMIQ06B - R&S SMIQB14 - Fading Simulator, 6 paths
- SMIQ06B - R&S SMIQB15 - Second Fading Simulator for 12 paths or 2 channels
- SMIQ06B - R&S SMIQB17 - Noise Generator and Distortion Simulator
- SMIQ06B - R&S SMIQB19 - RF and AF Rear Connectors
- SMIQ06B - R&S SMIQB20 - Modulation Coder
- SMIQ06B - R&S SMIQB21 - BER Measurement
- SMIQ06B - R&S SMIQB42 - Digital Standard IS-95 CDMA
- SMIQ06B - R&S SMIQB43 - Digital Standard WCDMA to NTT DoCoMo 1.0, ARIB 0.0 standard
- SMIQ06B - R&S SMIQB45 - Digital Standard WCDMA to 3GPP (FDD)
- SMIQ06B - R&S SMIQB47 - Low ACP for IS-95 CDMA and W-CDMA
- SMIQ06B - R&S SMIQB48 - Extended Functions for WCDMA (3GPP)
- SMIQ06B - R&S SMIQB49 - Extended Fading Functions for WCDMA (3GPP)
- SMIQ06B - R&S SMIQB60 - Arbitrary Waveform Generator incl. R&S WinIQSIM™
- SMIQ06B - R&S SMIQ-K8 - TETRA T1 Simulator
- SMIQ06B - R&S SMIQK11 - Digital Standard IS-95 CDMA (for option R&S SMIQB60)
- SMIQ06B - R&S SMIQK12 - Digital Standard cdma2000 (for option R&S SMIQB60)
- SMIQ06B - R&S SMIQK13 - Digital Standard WCDMA TDD Mode (3GPP) (for option R&S SMIQB60)
- SMIQ06B - R&S SMIQK14 - Digital Standard TD-SCDMA (for option R&S SMIQB60)
- SMIQ06B - R&S SMIQK15 - OFDM Signal Generation, HIPERLAN/2 (for option R&S SMIQB60)
- SMIQ06B - R&S SMIQK17 - Digital Standard 1xEV-DO (for option R&S SMIQB60)
- SMIQ06B - R&S SMIQK19 - Digital Standard IEEE 802.11 (for option R&S SMIQB60)
- SMIQ06B - R&S SMIQK20 - Digital Standard 3GPPP FDD incl. HSDPA (for option R&S SMIQB60)
The Rohde & Schwarz SMIQ06B Digital Modulations RF Generator operates from 300 KHz to 6.4 GHz, offering versatile signal generation capabilities. It supports advanced digital standards including GSM, WCDMA, CDMA IS-95, and EDGE. Integrated features include a fading simulator, 32 Mbit memory, and a full programmable GP-IB interface for seamless automated testing.
Ideal for telecom testing, the SMIQ06B provides reliable modulation formats like QPSK and GMSK with robust memory and simulation tools for accurate signal replication.
Testwall can supply the used Rohde & Schwarz SMIQ06B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMIQ06B.
Options and configurations
- Timebase Aging: 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁹ per day (Opt. B1)
