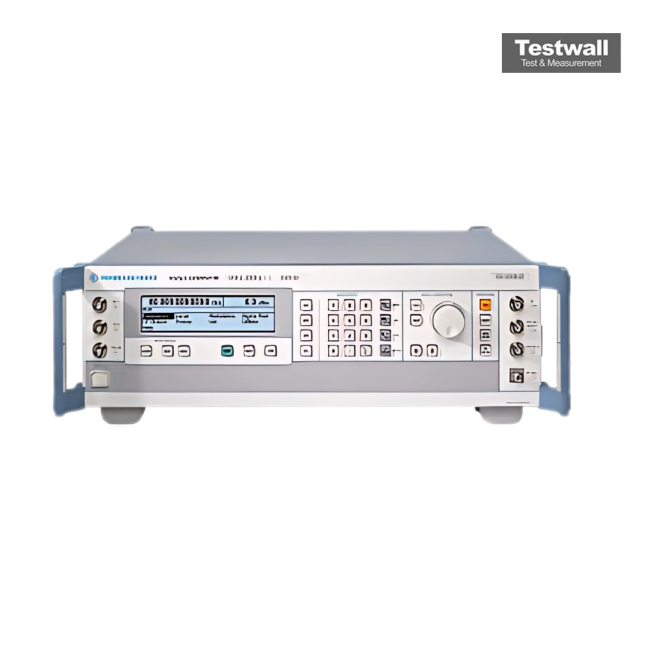

Rohde & Schwarz SMR50
| Attribute | Value |
|---|---|
| Modulation | pulse |
| Frequency Resolution | 1 kHz |
| Interfaces | GPIB |
| Weight | < 13.5 kg |
| Frequency Range | 1 to 50 GHz |
| Output Power | -20 to +3 dBm at 40 to 50 GHz |
| Sweep Modes | step sweep, ramp sweep, list mode |
| Timebase Aging | 10 MHz, 1 × 10⁻⁶ per year |
Rohde & Schwarz SMR50 10MHz - 50GHz Signal Generator Options:
- SMR - B1 - OCXO Reference Oscillator
- SMR - B3 - Frequency Resolution 0.1 Hz
- SMR - B4 - Ramp Sweep
- SMR - B5 - AM/FM/Scan Modulator
- SMR - B11 - Frequency Extension 0.01 GHz to 1 GHz
- SMR - B14 - Pulse Generator
- SMR - B15 - RF Attenuator for SMR20/27
- SMR - B17 - RF Attenuator for SMR30/40
- SMR - B19 - Rear Connectors for RF, AF (SMR20)
- SMR - B20 - Rear Connectors for RF, AF (SMR27/30/40)
- SMR - B23 - IF Input DC to 700 MHz (SMR20)
- SMR - B24 - IF Input DC to 700 MHz (SMR27/30/40)
- SMR - B25 - IF Input 0.04 GHz to 6 GHz (SMR20)
- SMR - B31 - Low Leakage
The Rohde & Schwarz SMR50 Signal Generator covers a frequency range from 1,000 MHz to 50 GHz, offering dual-channel output and a benchtop form factor. It is part of the R&S SMR family of CW generators featuring pulse modulation capability and expandable configurations for high-performance applications.
This device is optimal for both entry-level and advanced microwave testing, allowing users to enhance functionality with upgradable options tailored to complex measurement needs.
Testwall can supply the used Rohde & Schwarz SMR50 Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMR50 Signal Generator.
Options and configurations
- Modulation: pulse (AM, FM with Opt. B5)
- Frequency Resolution: 1 kHz (0.1 Hz with Opt. B3)
- Frequency Range: 1 to 50 GHz (10 MHz to 50 GHz with Opt. B11)
- Output Power: -20 to +3 dBm at 40 to 50 GHz (-110 dBm with Opt. B18)
- Sweep Modes: step sweep, ramp sweep (Opt. B4), list mode
- Timebase Aging: 10 MHz, 1 × 10⁻⁶ per year (< 1 × 10⁻⁷ with Opt. B1)
