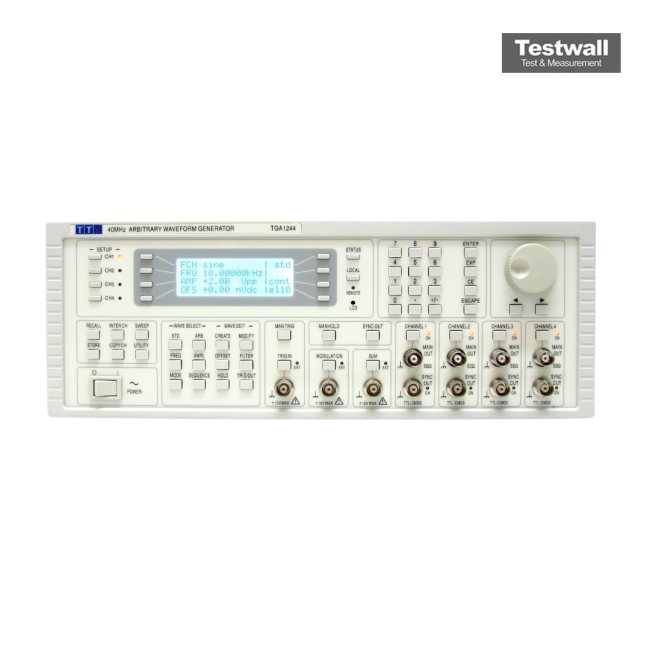

TTI Thurlby Thandar Instruments TGA1244
4 Ch 40MSa/s Arbitrary Waveform Generator
0.001 Hz to 40 MHz Frequency Range
Sine, Square, Triangle, Ramp, Pulse, Noise, DC, and 32 Arbitrary Waveforms Waveform Types
4096 points per waveform Arbitrary Waveform Memory
10 mVpp to 20 Vpp (into open circuit), 5 mVpp to 10 Vpp (into 50Ω) Output Amplitude
50 Ω Output Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 0.001 Hz to 40 MHz |
| Waveform Types | Sine, Square, Triangle, Ramp, Pulse, Noise, DC, and 32 Arbitrary Waveforms |
| Arbitrary Waveform Memory | 4096 points per waveform |
| Output Amplitude | 10 mVpp to 20 Vpp (into open circuit), 5 mVpp to 10 Vpp (into 50Ω) |
| Output Impedance | 50 Ω |
| Frequency Resolution | 7 digits or 1 µHz (whichever is greater) |
| Modulation Modes | AM, FM, PM, FSK, PSK, PWM, and Sweep |
| Display | Backlit LCD graphical display |
| Interface | RS-232 and USB (USBTMC compatible) |
| Power Supply | 115/230 V AC, 50/60 Hz |
| Model | Thandar |
|---|
The TTI -Thurlby Thandar Instruments TGA1244 is a 64k point/ch - 4 Ch , 40.00 MSa/sec Arbitrary Waveform Generator
