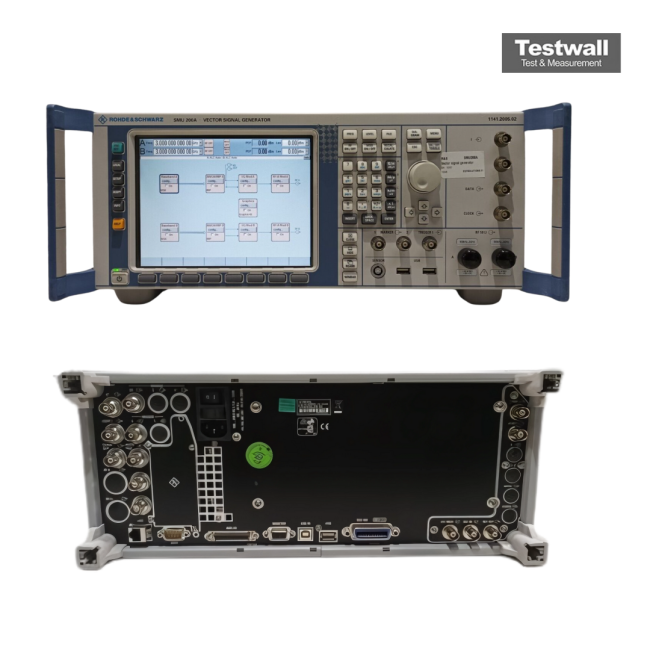

Rohde & Schwarz SMU200A-B103-B203 3
3 GHz/3 GHz, 2-Channel Vector Signal Generator
100 kHz to 3 GHz (Opt. B103) Frequency Range
0.01 Hz Frequency Resolution
< -30 dBc (level < 8 dBm) Harmonics
GPIB, LAN, USB Interfaces
color, 800 × 600 Display
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz (Opt. B103) |
| Frequency Resolution | 0.01 Hz |
| Harmonics | < -30 dBc (level < 8 dBm) |
| Interfaces | GPIB, LAN, USB |
| Display | color, 800 × 600 |
| Output Power | -145 to +13 dBm (PEP, ≤ 3 GHz), +11 dBm (> 3 GHz); +19/+17 dBm with Opt. B31/B36 |
| SSB Phase Noise | < -131 dBc/Hz at 1 GHz, 20 kHz offset (-135 typ.); < -136 dBc/Hz with Opt. B22 (-139 typ.) |
| Modulation | AM, FM, ΦM (Opt. B20/B22), I/Q, pulse, AWGN |
| Level Accuracy | < 0.5 dB (1 MHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Non-Harmonics | < -77 dBc (0.3 to 200 MHz), < -90 dBc (200 to 1500 MHz), < -84 dBc (1.5 to 3 GHz) |
| Switching Speed | < 2 ms (1.5 ms typ.); < 450 µs list mode |
| Modulation Bandwidth | 200 MHz RF bandwidth (external I/Q), 40 MHz internal baseband |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁷ per year, 1 × 10⁻⁹ per day |
| Dimensions | 435 × 192 × 460 mm |
| Weight | 25 kg |
Rohde & Schwarz SMU200A-B103-B203 3 GHz/3 GHz, 2-Channel Vector Signal Generator, Type N (f) Options:
- SMU200A - SMU-B17 - Baseband Input
- SMU200A - SMU-B16 - Differential Outputs (I OUT BAR / Q OUT BAR)
- SMU200A - SMU-B81 - Rear Panel Connectors for path 1 (recommended for use in 19" rack)
- SMU200A - SMU-B82 - Rear Panel Connectors for path 2 (recommended for use in 19" rack)
- SMU200A - SMU-Z5 - Adapter of AUX I/O interface to coaxial BNC connectors
- SMU200A - 1007.9845.32 - Operating and Service Manual (English - A4 format), printed version
- SMU200A - 1007.9845.39 - Operating and Service Manual (English - letter format), printed version
The Rohde & Schwarz SMU200A-B103-B203 Vector Signal Generator integrates two RF paths in a modular design, offering up to 3 GHz per channel with excellent ACLR of 70 dB and waveform memory up to
128 M samples. Ideal for R&D and production environments, it ensures high signal fidelity, frequency versatility,
and tight level repeatability of 0.05 dB. Testwall can supply the used Rohde & Schwarz SMU200A-B103-B203, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMU200A-B103-B203.
