Rohde & Schwarz ZNA67
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 67 GHz |
| Number of Ports | 2 or 4 ports |
| Dynamic Range | Up to 143 dB |
| Output Power | +15 dBm maximum |
| Measurement Speed | 4 µs per point (swept mode) |
| Trace Noise | 0.001 dB RMS typical |
| Connector Type | 2.92 mm (K) connectors |
| IF Bandwidth | 1 Hz to 10 MHz |
| Number of Test Ports (Internal Sources) | Up to 4 independent internal sources |
| Display | 12.1-inch XGA touchscreen display |
Rohde & Schwarz ZNA67 Options:
- ZNA67 - B16 - Direct source and receiver access
- ZNA67 - B21 - Source step attenuator, port 1
- ZNA67 - B22 - Source step attenuator, port 2
- ZNA67 - B23 - Source step attenuator, port 3
- ZNA67 - B24 - Source step attenuator, port 4
- ZNA67 - B31 - Receiver step attenuator, port 1
- ZNA67 - B32 - Receiver step attenuator, port 2
- ZNA67 - B33 - Receiver step attenuator, port 3
- ZNA67 - B34 - Receiver step attenuator, port 4
- ZNA67 - B41 - Internal pulse modulator, port 1
- ZNA67 - B42 - Internal pulse modulator, port 2
- ZNA67 - B43 - Internal pulse modulator, port 3
- ZNA67 - B44 - Internal pulse modulator, port 4
- ZNA67 - B3 - 3rd and 4th internal source (4-port model)
- ZNA67 - B161 - Source monitor access port 1
- ZNA67 - B163 - Source monitor access port 1 and port 3
- ZNA67 - B302 - Low-noise amplifier, port 2
- ZNA67 - B312 - Low-noise amplifier, port 2 (no export restriction)
- ZNA67 - B501 - Low-power spurious reduction, port 1
- ZNA67 - B511 - Low-power spurious reduction, port 1 (no export restriction)
- ZNA67 - B212 - Internal combiner, port 1 and port 2
- ZNA67 - B213 - Internal combiner, port 1 and port 3
- ZNA67 - B52 - 2nd internal source and LO (2-port model)
- ZNA-B4 - Precision frequency reference (OCXO)
- ZNA-B5 - 2nd internal LO source (4-port model)
- ZNA-B7 - Data streaming memory
- ZNA-B8 - mmWave converter LO
- ZNA-B15 - RFFE GPIO interface
- ZNA-B15 - RFFE GPIO interface, including voltage/current measurement
- ZNA-B19 - Additional removable hard disk
- ZNA-B26 - Direct IF access
- ZNA-B91 - Trigger and control I/O board
- ZNA-K1 - Spectrum analyzer mode (based on fast Fourier transform)
- ZNA-K2 - Time domain analysis (TDR)
- ZNA-K20 - Extended time domain analysis (including eye diagram)
- ZNA-K4 - Scalar mixer measurements, arbitrary frequency-converting measurements
- ZNA-K5 - Vector mixer measurements
- ZNA-K6 - Phase coherent source control
- ZNA-K61 - True differential mode
- ZNA-K7 - Measurements on pulsed signals
- ZNA-K17 - Increased IF bandwidth 30 MHz
- ZNA-K8 - mmWave converter support
- ZNA-K9 - Group delay measurements on frequency converters without LO access
- ZNA-K19 - 1 mHz frequency resolution
- ZNA-K28 - Continuous data recording
- ZNA-K30 - Noise figure measurement
- ZNA-K50 - Uncertainty analysis
- ZNA-K50P - Uncertainty analysis, pre-installed
- ZNA-K51 - Security write protection
- ZNA-K210 - Easy deembedding
- ZNA-K220 - In-situ deembedding
- ZNA-K230 - Smart fixture deembedding
- ZNA-K231 - Delta-L PCB characterization
- ZNA-K980 - Health and utilization monitoring service (HUMS)
| Model | ZNA67 |
|---|

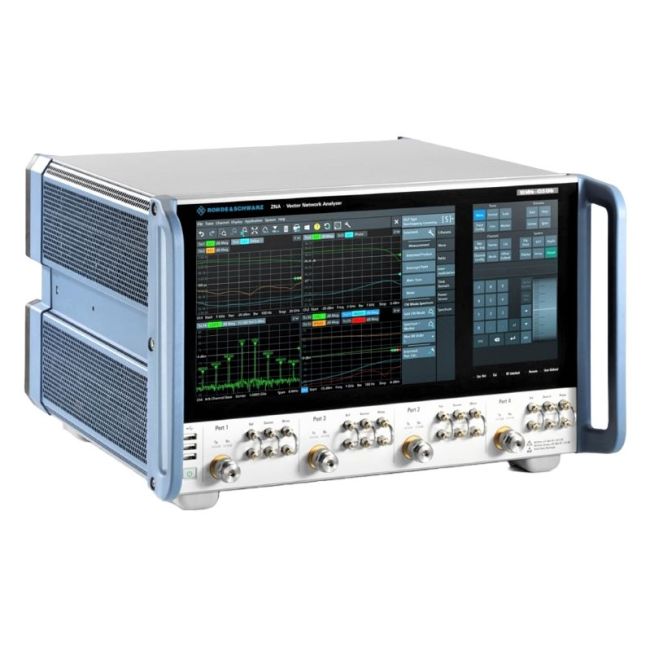

ROHDE & SCHWARZ ZNA67 Vector Network Analyzer
The Rohde & Schwarz ZNA67 features exceptional stability, low trace noise and excellent raw data, making it a perfect choice for development and production applications that require high accuracy, e.g. for developing and producing components and modules for A&D and satellite applications. It offers up to four internal, phase-cohe sources, allowing independent control of the signal's frequency at each port as well as phase measurements on mixers. The Rohde & Schwarz ZNA67 provides two internal LO sources, a true multichannel receiver architecture, pulse generators and modulators, an internal combiner and comprehensive trigger and synchronization capabilities.
Even intermodulation measurements on mixers and receivers can be performed on the Rohde & Schwarz ZNA67 without external signal generators, minimizing test time and simplifying test configuration. Users no longer need to work through a jungle of menus. Instead, a wizard guides them step by step through configuration and calibration. All relevant parameters are covered, and measurement traces are created in just a few steps. The Rohde & Schwarz ZNA67 characterizes low-noise amplifiers (LNA), receivers, frequency-converting DUTs and T/R modules precisely and efficiently. Two independent touchscreens provide utmost flexibility for smooth, efficient operation.
Specifications for the ROHDE & SCHWARZ ZNA67 Vector Network Analyzer Include:
| Frequency Range | 10 MHz to 67 GHz |
| Number of Ports | 2 or 4 |
| Dynamic Range | 139 dB (typ.), up to 170 dB (typ., with opt) |
| Trace noise | < 0.001 dB (at 1 kHz IF bandwidth) |
