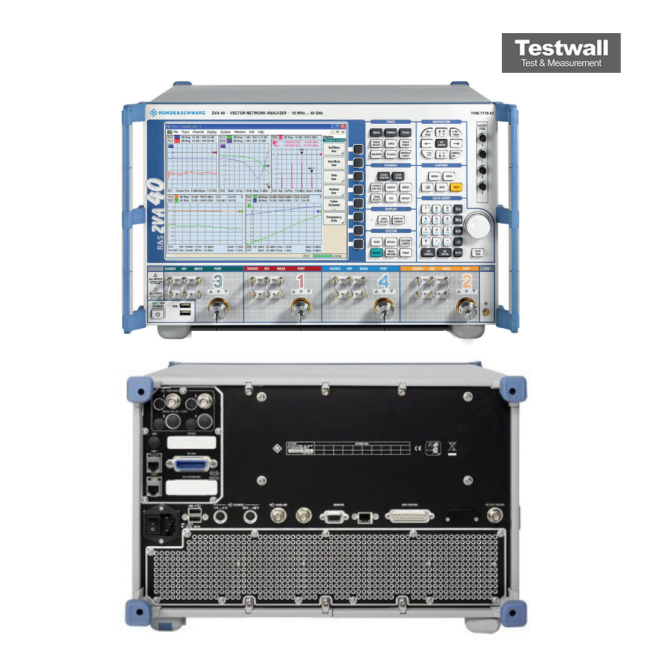

Rohde & Schwarz ZVA40
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 40 GHz |
| Number of Test Ports | 2 or 4 ports |
| Dynamic Range | Up to 140 dB |
| Output Power | -10 dBm to +10 dBm (typical) |
| Measurement Speed | Up to 4 ms per 201-point sweep |
| Connector Type | 2.92 mm (K) female |
| IF Bandwidth | 1 Hz to 500 kHz |
| Trace Noise | <0.004 dB RMS at 10 Hz IF bandwidth |
| Operating Temperature | 0°C to 55°C |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
Rohde & Schwarz ZVA40 Options:
- ZVA40 - ZVA40-B16 - Direct Generator/Receiver Access (two ports)
- ZVA40 - ZVA40-B16 - Direct Generator/Receiver Access (four ports)
- ZVA40 - ZVA40-B21 - Generator Step Attenuator Port 1
- ZVA40 - ZVA40-B22 - Generator Step Attenuator Port 2
- ZVA40 - ZVA40-B23 - Generator Step Attenuator Port 3 (four ports)
- ZVA40 - ZVA40-B24 - Generator Step Attenuator Port 4 (four ports)
- ZVA40 - ZVA40-B31 - Receiver Step Attenuator Port 1
- ZVA40 - ZVA40-B32 - Receiver Step Attenuator Port 2
- ZVA40 - ZVA40-B33 - Receiver Step Attenuator Port 3 (four ports)
- ZVA40 - ZVA40-B34 - Receiver Step Attenuator Port 4 (four ports)
- ZVA40 - ZVAB-B4 - Oven Quartz (OCXO)
- ZVA40 - ZVAB-K2 - Time Domain
- ZVA40 - ZVA-K4 - Frequency Conversion
| Model | ZVA40 |
|---|
The ROHDE & SCHWARZ ZVA40 is a premium vector network analyzer offering linear and nonlinear amplifier and mixer measurements, true differential analysis, and a wide 300 kHz to 40 GHz frequency range. Key features include high output power (>15 dBm), wide dynamic range (>140 dB), and fast measurement speeds (<3.5 µs per point). It supports advanced calibration techniques like TOSM, TRL/LRL, and more.
Ideal for characterizing filters, mixers, receivers, and transceivers, the ZVA40 also enables precise noise figure, pulse profile, and group delay measurements with automatic calibration support.
Testwall can supply the used ROHDE & SCHWARZ ZVA40, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the ROHDE & SCHWARZ ZVA40.
