Rohde & Schwarz ZVB14
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 14 GHz |
| Number of Test Ports | 2 or 4 ports |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -50 dBm to +10 dBm |
| Trace Noise | 0.004 dB RMS at 10 Hz IF bandwidth |
| IF Bandwidth | 1 Hz to 500 kHz |
| Measurement Speed | Up to 32 channels with 16,001 points per channel |
| Connector Type | N-type 50 Ohm (female) |
| Display | 10.4-inch XGA color LCD touchscreen |
| Interface / Connectivity | GPIB, USB, LAN (Ethernet) |
Rohde & Schwarz ZVB14 Options:
- ZVB14 - B16 - Direct Generator/Receiver Access (increases sensitivity and dynamic range by typically 10 dB)
- ZVB14 - ZVAB-B4 - Oven Quartz (OCXO) - Enhanced frequency accuracy
- ZVB14 - ZVAB-K2 - Time Domain - Display of discontinuities, reflection factor or impedance versus delay/length, step and impulse response, lowpass/bandpass frequency spacing, gated S-parameters
- ZVB14 - ZVB-K3 - Mixer and Harmonic Measurements - Conversion loss of mixers versus frequency or power; magnitude of harmonics of any order versus frequency or power
| Model | ZVB14 |
|---|

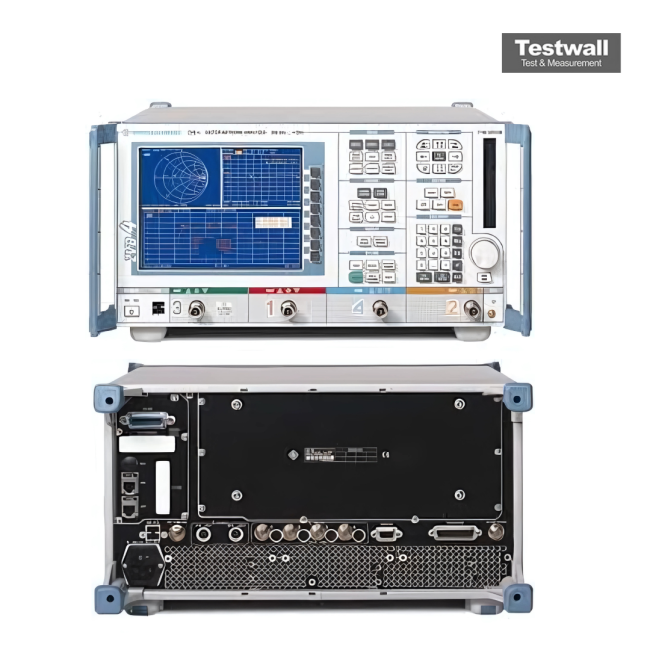

The Rohde & Schwarz ZVB14 is a 4-port vector network analyzer covering a frequency range of 10 MHz to 14 GHz with a dynamic range over 123 dB and high output power of +13 dBm. It supports high-speed parallel measurements through simultaneous dual-port excitation and an innovative user interface.
Ideal for multiport and balanced measurements like SAW filters or antenna modules, the ZVB14 delivers fast and precise testing within a compact, lightweight design.
Testwall can supply the used Rohde & Schwarz ZVB14, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVB14.
