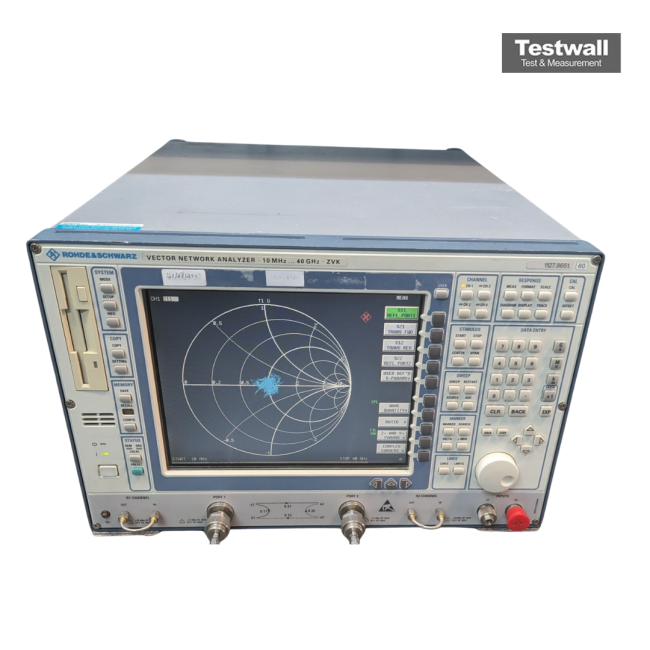

Rohde & Schwarz ZVK40
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 40 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 123 dB |
| Output Power | +10 dBm maximum |
| Measurement Speed | Up to 50,000 points per second |
| Connector Type | 3.5 mm (f) / 2.92 mm compatible |
| Trace Noise | 0.004 dB RMS typical |
| IF Bandwidth | 1 Hz to 1 MHz |
| Source Match | Up to 40 dB typical |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Model | ZVK40 |
|---|
The Rohde & Schwarz ZVK Vector Network Analyzer features a 10 MHz to 40 GHz frequency range, 100 μHz resolution, over 110 dB dynamic range, and noise under -110 dBm. It has 2.92 mm male test port connectors and includes an integrated generator, two reference and receiver channels, and a bidirectional test set for high-performance analysis.
This analyzer is ideal for complex bidirectional testing like power amplifier evaluations, with expandable attenuators and switch integration for flexible test paths.
Testwall can supply the used Rohde & Schwarz ZVK 40GHz Vector Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVK 40GHz Vector Network Analyzer.
