Keysight (Agilent)
Keysight (Agilent) N5224A-419

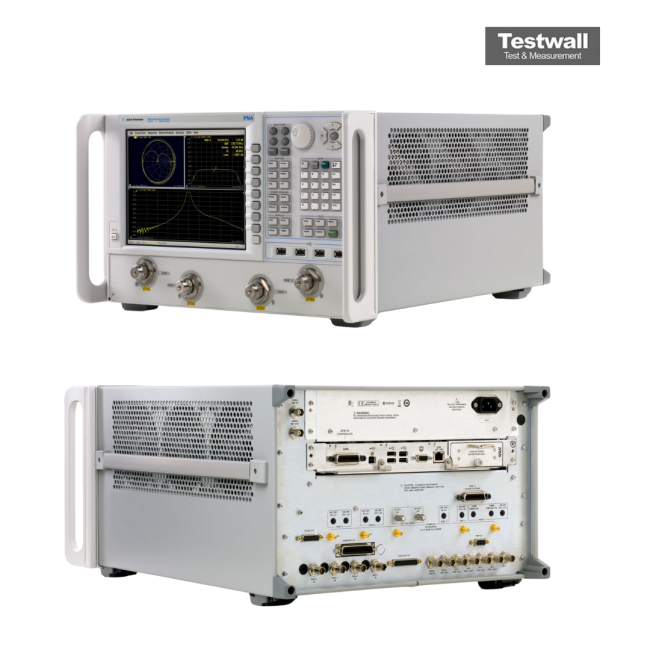

4-port, 43.5 GHz PNA Network Analyzer, 2.4 mm (f)
10 MHz to 43.5 GHz Frequency Range
4 Number of Ports
Up to 122 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
2.4 mm (male) Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 43.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Connector Type | 2.4 mm (male) |
| Option Description | Option 419: 4-Port, 43.5 GHz Configuration |
| Trace Noise | 0.004 dB RMS |
| Measurement Speed | Up to 40 µs per point |
| System Interface | USB, LAN (LXI Core), GPIB |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| IF Bandwidth | 1 Hz … 15 MHz |
| Number of Points | max. 32,001 |
| Measurement Parameters | S-parameters, group delay |
| Display | 10.4" LCD, 1024×768 |
Available configurations
| Model | Ports | Frequency range | Configuration |
| N5224A-200 | 2 | 10 MHz to 43.5 GHz | standard test set |
| N5224A-201 | 2 | 10 MHz to 43.5 GHz | configurable test set |
| N5224A-217 | 2 | 10 MHz to 43.5 GHz | configurable test set, source step attenuators, receiver step attenuators |
| N5224A-219 | 2 | 10 MHz to 43.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5224A-400 | 4 | 10 MHz to 43.5 GHz | standard test set |
| N5224A-401 | 4 | 10 MHz to 43.5 GHz | configurable test set |
| N5224A-417 | 4 | 10 MHz to 43.5 GHz | configurable test set, source step attenuators, receiver step attenuators |
| N5224A-419 | 4 | 10 MHz to 43.5 GHz | 2.4 mm |
Keysight Technologies N5224A-419 Options:
- N5224A-419 - 200 - 2-port base model with standard test set
- N5224A-419 - 201 - To base model, adds front-panel jumpers and R1 receiver switch
- N5224A-419 - 217 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5224A-419 - 219 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
- N5224A-419 - 400 - 4-port base model with standard test set
- N5224A-419 - 401 - To base model, adds front-panel jumpers and R1 receiver switch
- N5224A-419 - 417 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5224A-419 - 419 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
The Keysight (Agilent) N5224A-419 is a 2-port PNA/L microwave network analyzer offering coverage from 10 MHz to 43.5 GHz, engineered with rugged 2.4 mm connectors and a metrology-ready configuration for high-precision RF component analysis.
Ideal for demanding test environments, it supports USB, LAN, and GPIB interfaces and features a touchscreen UI for intuitive operation and accurate measurements.
Testwall can supply the used Keysight (Agilent) N5224A-419, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5224A-419.
