Schaffner CDN110
| Attribute | Value |
|---|---|
| Frequency Range | 0.15 MHz – 80 MHz |
| Number of Lines | 1-line (single phase) |
| Maximum Current | 16 A |
| Maximum Voltage | 250 V AC |
| Common Mode Impedance | 150 Ω ± 20 Ω (as per CISPR 16-1-2) |
| Connector Type | N-type RF output connector |
| Standard Compliance | CISPR 16-1-2, EN 55016-1-2 |
| Insertion Loss | ≥ 40 dB (at frequencies above 1 MHz) |
| Operating Temperature | 0 °C to +55 °C |
| Housing / Enclosure | Shielded metal enclosure for low stray coupling |
| Model | CDN110 |
|---|

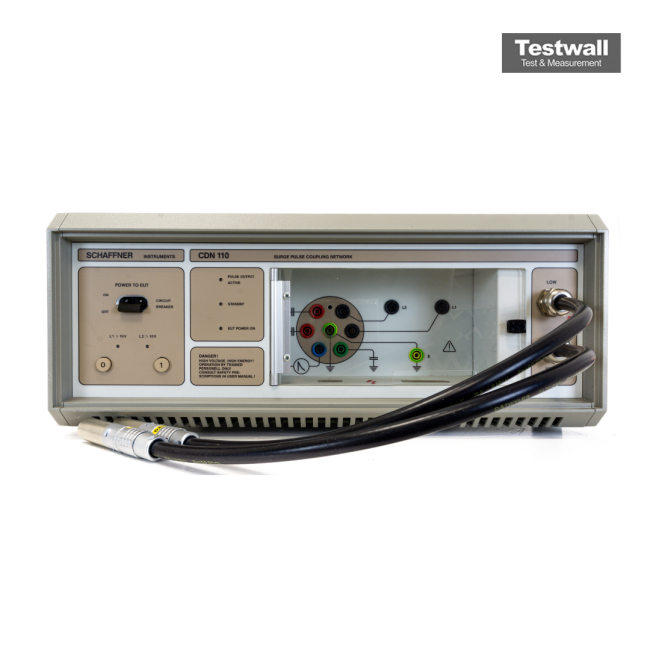

The Schaffner CDN110 is a single-phase surge coupling/decoupling network designed for use with the NSG651 High Energy Pulse Generator. It enables coupling of pulses up to 6.6 kV (1.2/50 µs waveform) or surges up to 3 kA (8/20 µs waveform) into single-phase mains supply lines at 230 Vac. The unit supports EUT voltages up to 420 Vac (rms) and currents up to 16 A, conforming to IEC 801-5 and ANSI-IEEE C62.41 standards.
Engineered for system and instrument testing, the Schaffner CDN110 provides safe and reliable operation with integrated interlocks. It normally operates beneath the NSG651 and comes supplied with the necessary connections, ensuring secure test configurations.
Testwall can supply the used Schaffner CDN110, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner CDN110.
