Schaffner NSG 651
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4.4 kV peak |
| Pulse Rise Time | 5 ns (typical) |
| Pulse Width | 50 ns / 100 ns selectable |
| Repetition Rate | Up to 100 pulses per second |
| Source Impedance | 50 Ω |
| Compliance Standards | IEC 61000-4-2, ISO 10605 |
| ESD Test Modes | Contact discharge and air discharge |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temperature | 15°C to 35°C |
| Interface / Control | RS-232 serial interface for remote control and automation |
| Model | NSG 651 |
|---|

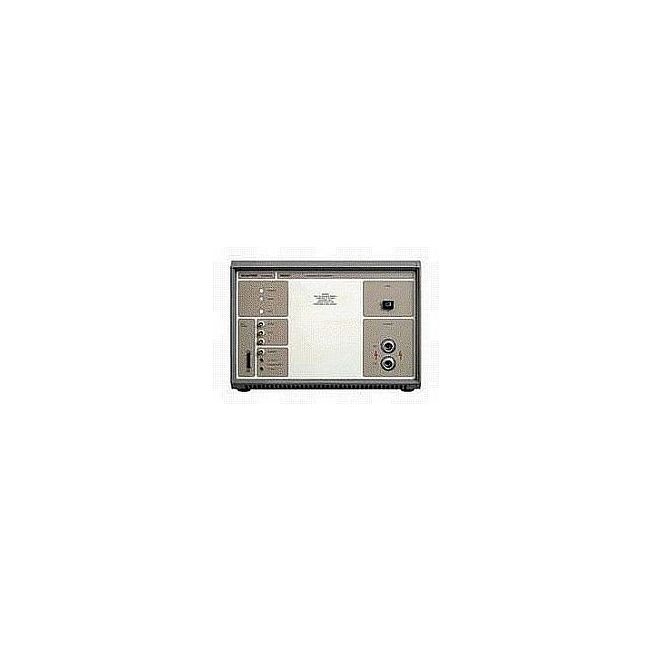

The Schaffner NSG651 Telecom Surge Generator delivers hybrid pulses of 1,2/50 µs up to 6,6 kV and 8/20 µs up to 3,3 kA, addressing IEC 801-5, ANSI‑IEEE C62.45 and VDE 0109 requirements. It also provides telecom shock impulses of 10/700 µs, 100/700 µs and 0,5/700 µs as described in CCITT K17 and K20. All functions are controlled and supervised by an internal microprocessor, ensuring precise, repeatable high‑energy surge generation with consistent waveform integrity.
The NSG651 supports IBM‑compatible PC control (PC not included) and can be integrated into automated test systems, making it ideal for compliance and characterization tasks in telecom and electronics laboratories.
Testwall can supply the used Schaffner NSG651, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG651.
