Sorensen

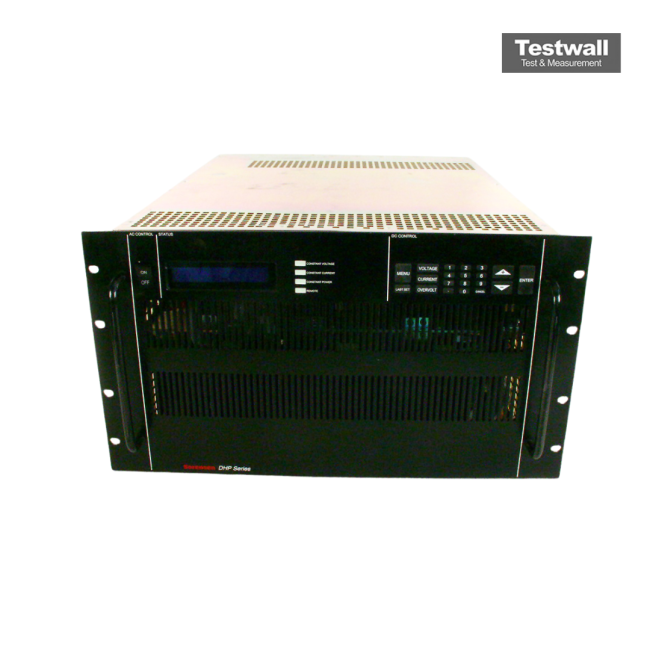

Sorensen DHP 250-12
250-12 DC Power Supply
0 - 250 VDC Output Voltage
0 - 12 A Output Current
3000 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 250 VDC |
| Output Current | 0 - 12 A |
| Output Power | 3000 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 15 mV RMS |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DHP 250-12 Options:
- DHP - Three, 3-wire plus ground - Three-phase input option (2 kW to 3 kW series)
- DHP - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC) (5 kW to 30 kW series)
- DHP - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC) (5 kW to 30 kW series)
| Model | DHP |
|---|
The Sorensen DHP 250-12 is DCrProgrammable Supply rated for 0-250 V / 0-12 A
