Sorensen

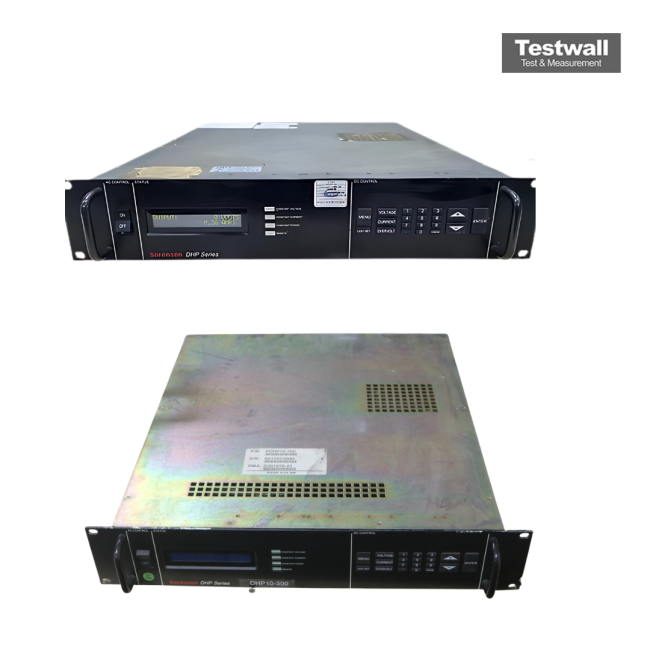

Sorensen DHP 300-10
300-10 DC Power Supply
0 - 300 VDC Output Voltage
0 - 10 A Output Current
3000 W Output Power
208/240 VAC, Single Phase Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 300 VDC |
| Output Current | 0 - 10 A |
| Output Power | 3000 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage) | 20 mV RMS / 100 mV p-p |
| Programming Interface | Analog, RS-232, GPIB (optional) |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Forced Air Cooling |
Sorensen DHP 300-10 Options:
- DHP - Three, 3-wire plus ground - Three-phase input power option (2 kW to 3 kW series)
- DHP - 400 VAC - 400 VAC input voltage option (5 kW to 30 kW series, tested to 360-440 VAC)
- DHP - 480 VAC - 480 VAC input voltage option (5 kW to 30 kW series, tested to 432-528 VAC)
| Model | DHP |
|---|
The Sorensen DHP 300-10 is DC Programmable Supply rated for 0-300 V / 0-10 A
