Sorensen

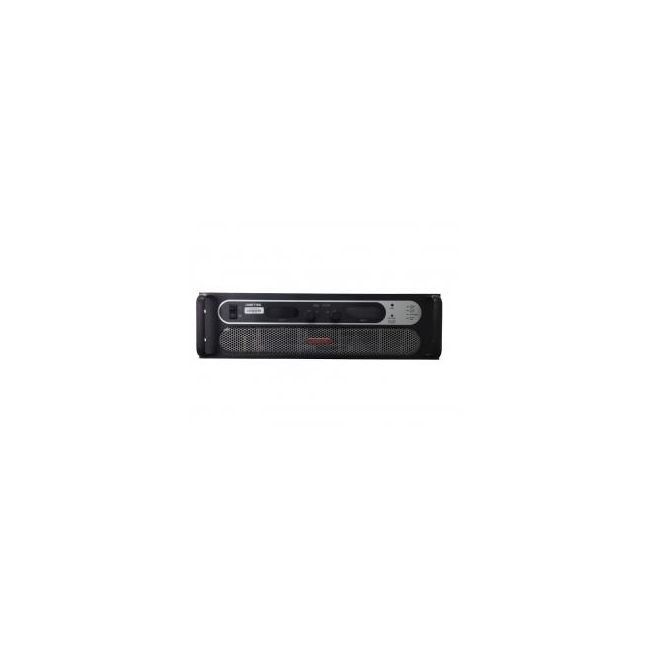

Sorensen SGI10X1K2
DC Power Supply, 10V, 1200A, 12kW
0 - 10 V Output Voltage
0 - 1000 A Output Current
10 kW Output Power
208/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 10 V |
| Output Current | 0 - 1000 A |
| Output Power | 10 kW |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Voltage Regulation (Load) | 0.02% of full scale |
| Current Regulation (Load) | 0.05% of full scale |
| Programming Interface | Analog, RS-232, GPIB (optional), Ethernet (optional) |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to 50°C |
Sorensen SGI10X1K2 Options:
- SGI10X1K2 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGI10X1K2 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGI10X1K2 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGI10X1K2 - 0A - No Remote Control Option
- SGI10X1K2 - 1A - IEEE-488.2 + RS-232C
- SGI10X1K2 - 1C - Ethernet + RS-232C
- SGI10X1K2 - 1D - Isolated Analog Control
- SGI10X1K2 - 2A - Combined Options 1A+1D
- SGI10X1K2 - 2G - Combined Options 1C+1D
- SGI10X1K2 - AA - No Process Option
- SGI10X1K2 - AB - Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGI10X1K2 - AJ - Front panel dust filter - factory installed - 3U unit only
- SGI10X1K2 - CV - 400Hz AC input @ 208 VAC (does not carry CE, CSA or UL marks) (6U only) STD on 3U
- SGI10X1K2 - PF - Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V. Included in 10V-30V, 50V and 1000V.)
- SGI10X1K2 - R - RoHS Compliant Version
| Model | SGI10X1K2 |
|---|
SORENSEN SGI10X1K2 DC Power Supply The Sorensen SGI10X1K2 Series represents the next generation of high power programmable DC power supplies. The SG Series is designed for exceptional load transient response, low noise and the highest power density in the industry. With a full 15 kW available down to 20VDC output in a 3U package the SG leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units. At the heart of the SGI10X1K2 series is a 5 kW power module. Depending on the output voltage, one to six modules can be configured in a single chassis to deliver 5 kW to 30 kW of power. Combinations of these chassis can then be easily paralleled to achieve power levels up to 150 kW. Paralleled units operate like one single supply providing total system cur.SGI: Advanced Intelligent Control: The SGI combines onboard intelligent controls with the outstanding power electronics common to all SG family supplies. These controls enable sophisticated sequencing, constant power mode and save/recall of instrument settings. Looping of sequences makes the SGI ideal for repetitive testing. An impressive vacuum fluorescent graphical display in eight languages, context sensitive “soft” keys and front panel keyboard simplify programming of the SGI. Specifications for the SORENSEN SGI10X1K2 DC Power Supply Include:
