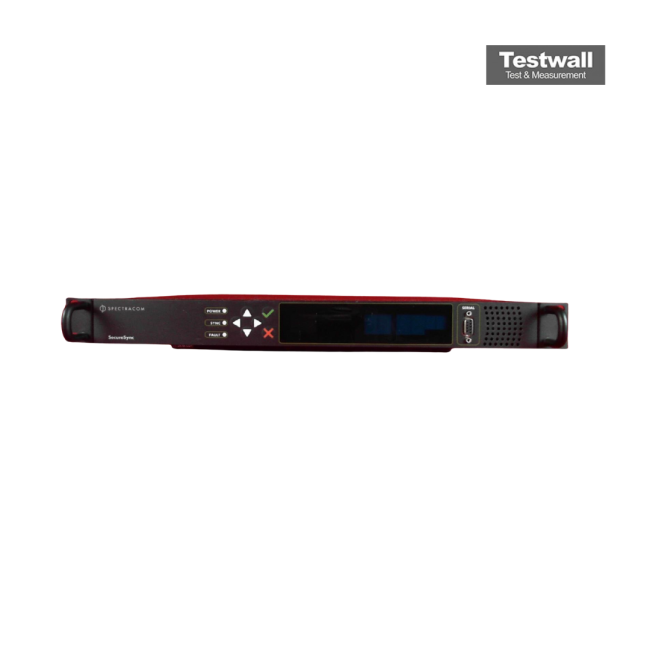

Spectracom SECURESYNC
| Attribute | Value |
|---|---|
| Frequency Accuracy | ±1 × 10⁻¹² (GPS locked) |
| GPS Receiver | Multi-channel, multi-constellation GNSS receiver (GPS, GLONASS, Galileo, BeiDou) |
| Time Accuracy | <100 ns RMS to UTC (GPS locked) |
| Network Time Protocol (NTP) | NTPv3/v4 compliant, Stratum 1 server, supports unicast, multicast, and broadcast |
| PTP/IEEE 1588 | IEEE 1588-2008 (PTPv2) compliant, Grandmaster Clock capable |
| Output Signals | 1 PPS, 10 MHz, IRIG-B, RS-232/RS-422 serial time code, programmable pulse outputs |
| Network Interfaces | Up to four Gigabit Ethernet ports (modular, expandable via option cards) |
| Oscillator Options | TCXO, OCXO, or Rubidium oscillator options for enhanced holdover performance |
| Power Supply | Dual redundant AC (100–240 V, 50/60 Hz) and/or DC power supply options |
| Form Factor | 1U rack-mount chassis, 19-inch standard rack compatible |
Spectracom SECURESYNC Time And Frequency Reference System Options:
- SECURESYNC - 013 - Ac Input Psu / Ocxo Internal Oscillator / Multi-Gnss Primary Reference
- SECURESYNC - 0XX - Ac Input Psu
- SECURESYNC - 1204-01 - 1 Pps/Freq Input (Ttl Levels) Module
- SECURESYNC - 1204-02 - Ascii Time Code Module (Rs-232)
- SECURESYNC - 1204-03 - 1 Pps/Freq Input (Rs-485 Levels) Module
- SECURESYNC - 1204-04 - Ascii Time Code Module (Rs-485)
- SECURESYNC - 1204-05 - Irig Module, Bnc (1 Input, 2 Outputs)
- SECURESYNC - 1204-06 - Gigabit Ethernet Module (3 Ports)
- SECURESYNC - 1204-08 - 5 MHZ Output Module (3 Outputs)
- SECURESYNC - 1204-09 - T1-1.544 (75 Ohm) Or E1-2.048 (75 Ohm) Module
- SECURESYNC - 1204-0A - T1-1.544 (100 Ohm) Or E1-2.048 (120 Ohm) Module
- SECURESYNC - 1204-0F - Alarm Module
- SECURESYNC - 1204-10 - Havequick Output Module (Ttl)
- SECURESYNC - 1204-11 - Stanag Output Module
- SECURESYNC - 1204-13 - Programmable Frequency Output Module (Sine Wave)
- SECURESYNC - 1204-15 - Irig Module, Bnc (4 Outputs)
- SECURESYNC - 1204-17 - Square Wave (Ttl) Output Module
- SECURESYNC - 1204-18 - Quad 1 Pps Output Module (Ttl)
- SECURESYNC - 1204-19 - Quad 1 Pps Output Module (10 V)
- SECURESYNC - 1204-1B - Havequick Output Module (Rs-485)
- SECURESYNC - 1204-1C - 10 MHZ Output Module (3 Outputs)
- SECURESYNC - 1204-1D - Stanag Input Module
- SECURESYNC - 1204-1E - Irig Module, Fiber Optic (4 Outputs)
- SECURESYNC - 1204-21 - Quad 1 Pps Output Module (Rs-485 (Terminal Block))
- SECURESYNC - 1204-22 - Irig Module, Rs-485 (4 Outputs)
- SECURESYNC - 1204-23 - Event Broadcast Module
- SECURESYNC - 1204-24 - Stanag Isolated Input Module
- SECURESYNC - 1204-25 - Stanag Isolated Output Module
- SECURESYNC - 1204-26 - 1 MHZ Output Module (3 Outputs)
- SECURESYNC - 1204-27 - Irig Module, Fiber Optic (1 Input, 2 Outputs)
- SECURESYNC - 1204-28 - 1 In / 3 Out 1 Pps Module (Ttl (Bnc))
- SECURESYNC - 1204-29 - 1 In / 3 Out Havequick Module (Ttl (Bnc))
- SECURESYNC - 1204-2A - 1 In / 2 Out 1 Pps Module (Fiber Optic)
- SECURESYNC - 1204-2B - Quad 1 Pps Output Module (Fiber Optic)
- SECURESYNC - 1204-2F - Programmable Frequency Output Module (Ttl)
- SECURESYNC - 1204-30 - Programmable Frequency Output Module (Rs-485)
- SECURESYNC - 1204-32 - 1Gb Ptp Module
- SECURESYNC - 1204-3E - Stl And Other Signals Module
- SECURESYNC - 1XX - Ac / 12V Dc Input Psu
- SECURESYNC - 2XX - Ac / 24/48V Dc Input Psu
- SECURESYNC - 3XX - 12V Dc Input Psu
- SECURESYNC - 4XX - 24/48V Dc Input Psu
- SECURESYNC - SS-OPT-BSH - Gps Jamming And Spoofing Detection
- SECURESYNC - SS-OPT-SKY - Skylight Indoor Gps Timing System
- SECURESYNC - X0X - Tcxo Internal Oscillator
- SECURESYNC - X1X - Ocxo Internal Oscillator
- SECURESYNC - X2X - Low Phase Noise Ocxo Internal Oscillator
- SECURESYNC - X3X - Rubidium Internal Oscillator
- SECURESYNC - X5X - Low Phase Noise Rb Internal Oscillator
- SECURESYNC - XX1 - No Gnss Primary Reference
- SECURESYNC - XX3 - Multi-Gnss Primary Reference
- SECURESYNC - XX5 - Saasm Gps (Mru) Primary Reference
- SECURESYNC - XX7 - Saasm Gps (Gbgram) Primary Reference
| Model | SECURESYNC |
|---|
The Spectracom SecureSync Time and Frequency Reference System offers multi-GNSS synchronization (GPS, Galileo, GLONASS, BeiDou, QZSS) with internal precision time-keeping using TCXO, OCXO, or Rb oscillators. It supports a wide range of input/output signals and operates reliably in temperatures from -20°C to +65°C. The unit delivers a precise 1PPS timing signal aligned with a 10 MHz frequency, backed by modular hardware design and an array of configurable option cards for maximum flexibility.
Ideal for demanding network environments, SecureSync integrates advanced NTP and PTP (IEEE-1588v2) protocols, security-hardened architecture, and tamper-proof management. Its customizable modules and GNSS resilience features make it suitable for mission-critical time synchronization applications.
Testwall can supply the used Spectracom SecureSync, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Spectracom SecureSync.
