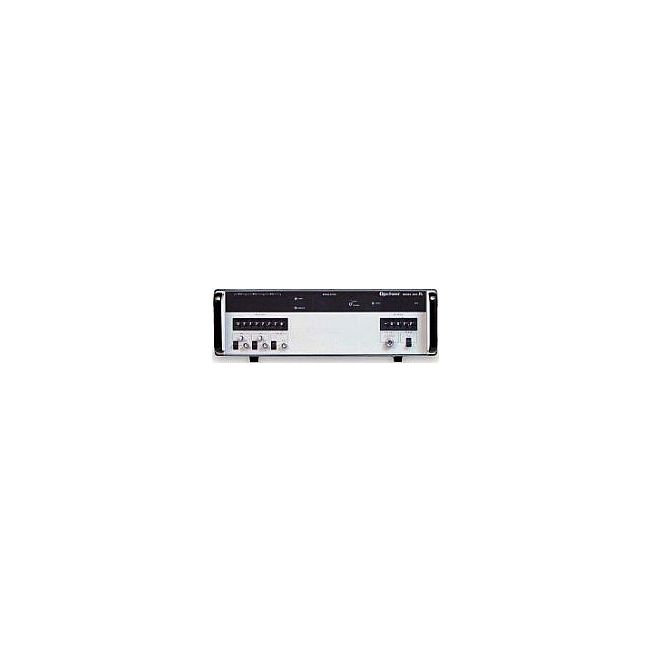

Gigatronics
SyntheSys Research 605
50 Mbps to 622 Mbps Bit Rate Range
PRBS 2^7-1, 2^10-1, 2^15-1, 2^23-1, 2^31-1 and user-defined patterns Data Pattern
200 mV to 2000 mV peak-to-peak (into 50 ohms) Output Amplitude
50 Ohms Output Impedance
Less than 600 ps (20% to 80%) Rise/Fall Time
| Attribute | Value |
|---|---|
| Bit Rate Range | 50 Mbps to 622 Mbps |
| Data Pattern | PRBS 2^7-1, 2^10-1, 2^15-1, 2^23-1, 2^31-1 and user-defined patterns |
| Output Amplitude | 200 mV to 2000 mV peak-to-peak (into 50 ohms) |
| Output Impedance | 50 Ohms |
| Rise/Fall Time | Less than 600 ps (20% to 80%) |
| Clock Source | Internal or External |
| Interface | GPIB and RS-232 |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Benchtop / Rack Mountable |
| Model | 605 |
|---|
