TDK-Lambda

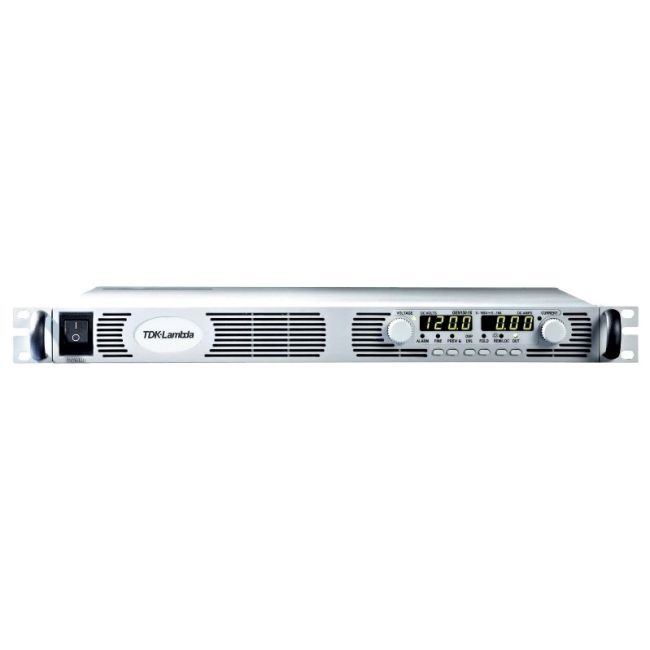

TDK-Lambda GEN80-30
Genesys DC Power Supply, 80V, 30A, 2400W
0 – 80 VDC Output Voltage
0 – 30 A Output Current
2400 W Output Power
208/240 VAC Single Phase, 50/60 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 80 VDC |
| Output Current | 0 – 30 A |
| Output Power | 2400 W |
| Input Voltage | 208/240 VAC Single Phase, 50/60 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple & Noise (Voltage) | 80 mV peak-to-peak |
| Programming Interfaces | Analog (0–5 V or 0–10 V), RS-232/485, GPIB (optional), LAN (optional) |
| Operating Temperature | 0°C to 50°C |
| Form Factor | 3U Rack Mount (19-inch rack compatible) |
TDK-Lambda GEN80-30 Options:
- GEN80-30 - IEMD - GPIB (Multi-Drop Master) Interface
- GEN80-30 - MD - Multi-Drop Slave Interface
- GEN80-30 - IS510 - Voltage Programming Isolated Analog Interface
- GEN80-30 - IS420 - Current Programming Isolated Analog Interface
- GEN80-30 - LAN - LAN Interface (Complies with LXI Class C)
- GEN80-30 - USB - USB Interface
- GEN80-30 - 1P230 - AC Input Option: Single Phase 170~265VAC
- GEN80-30 - 3P208 - AC Input Option: Three Phase 170~265VAC
| Model | GEN80-30 |
|---|
TDK-Lambda GEN80-30 is a 1U high-density programmable power supply from the Genesys family, offering low ripple & noise, RS-232/RS-485 interfaces, and parallel operation with active current sharing.
Designed for OEM, industrial, and laboratory use, it provides intuitive front panel control, four-digit LED meters, coarse/fine adjustments, and Active Power Factor Correction of 0.99.
Testwall can supply the used TDK-Lambda GEN80-30, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the TDK-Lambda GEN80-30.
