Tektronix 11401A
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 5 GS/s (single shot) |
| Number of Channels | 2 (expandable with plug-in modules) |
| Vertical Resolution | 8 bits |
| Record Length | Up to 15,000 points per channel |
| Time Base Range | 50 ps/div to 10 s/div |
| Input Impedance | 50 Ω or 1 MΩ (plug-in dependent) |
| Display | Color raster display, 640 x 480 resolution |
| Trigger Modes | Edge, pulse width, logic, video, and delayed triggering |
| Interface/Connectivity | GPIB (IEEE-488), RS-232, and floppy disk drive |
| Model | 11401A |
|---|

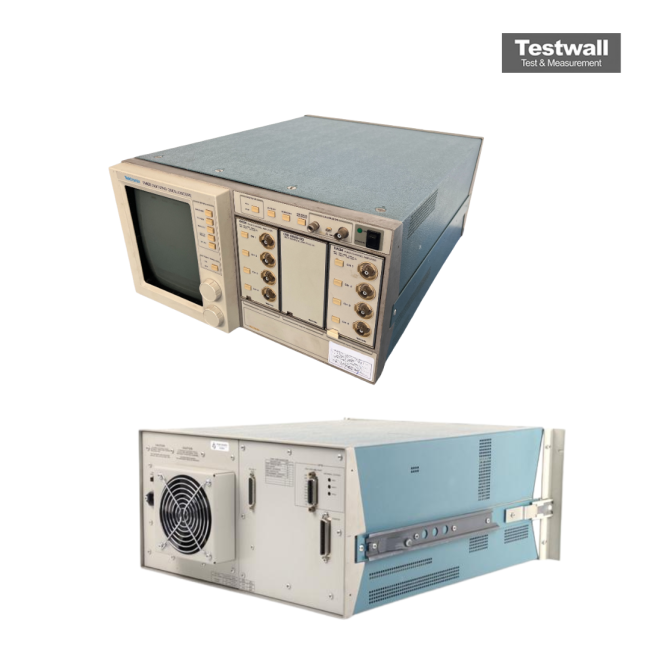

The Tektronix 11401A 500MHz Digitizing Scope Mainframe delivers exceptional signal analysis with high-speed acquisition and precision. It supports a wide range of plug-in modules, offering versatile measurement capabilities across complex test environments. Engineered for advanced electronics testing, it ensures accurate waveform capture and detailed data visualization.
Ideal for laboratory and field applications, the 11401A provides flexibility in measurement setup and high-resolution data storage. Its modular design allows easy integration into existing test systems.
Testwall can supply the used Tektronix 11401A 500MHz Digitizing Scope Mainframe, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 11401A 500MHz Digitizing Scope Mainframe.
