Tektronix 1731
| Attribute | Value |
|---|---|
| Display Type | Waveform Monitor |
| Video Standard | NTSC |
| Bandwidth | 5 MHz |
| Input Impedance | 75 Ohms |
| Number of Channels | 2 |
| Power Supply | 100-240V AC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 75°C (-40°F to 167°F) |
| Form Factor | Portable / Benchtop |
| Display | CRT Monochrome Display |
| Model | 1731 |
|---|

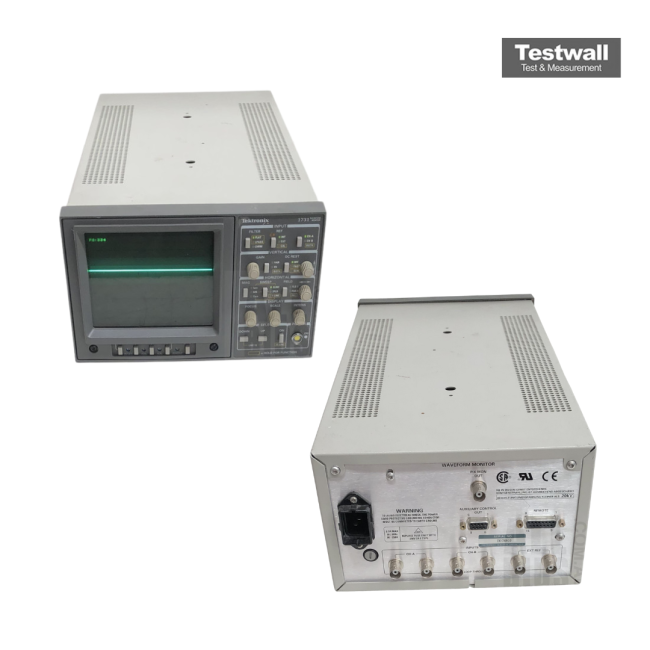

The Tektronix 1731 is a compact rack-mount waveform/vector monitor ideal for NTSC broadcast applications. It features dual-display capability, allowing simultaneous viewing of waveform and vectorscope data. Precision chroma and luma measurement, composite video input, and adjustable graticules make it an essential tool for video signal analysis and troubleshooting.
This unit supports accurate timing adjustments and signal monitoring in studio or field environments, making it valuable for engineers and broadcast professionals.
Testwall can supply the used Tektronix 1731, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1731.
