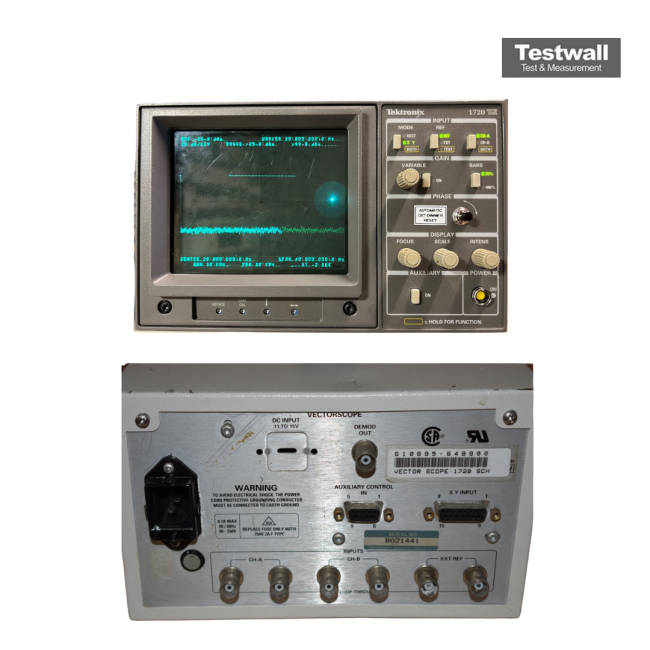

Tektronix 1720SCH
Vectorscope.
Composite Video (NTSC) Input Signal
Chrominance phase and amplitude display Vectorscope Display
DC to 5 MHz Bandwidth
3.579545 MHz (NTSC) Subcarrier Frequency
75 Ohms Input Impedance
| Attribute | Value |
|---|---|
| Input Signal | Composite Video (NTSC) |
| Vectorscope Display | Chrominance phase and amplitude display |
| Bandwidth | DC to 5 MHz |
| Subcarrier Frequency | 3.579545 MHz (NTSC) |
| Input Impedance | 75 Ohms |
| Display Type | Waveform Monitor and Vectorscope combination |
| Power Requirements | 90 to 250 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions | Standard rack-mountable unit (3U) |
| Compliance Standards | NTSC broadcast video signal measurement standards |
| Model | 1720SCH |
|---|
The Tektronix 1720SCH is a specialized NTSC waveform monitor that features SCH phase measurement and SC/H burst detection, enabling accurate synchronization in professional color video environments.
With enhanced vertical resolution and reference input support, it ensures precise video signal evaluation and stability.
Testwall can supply the used Tektronix 1720SCH, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1720SCH.
