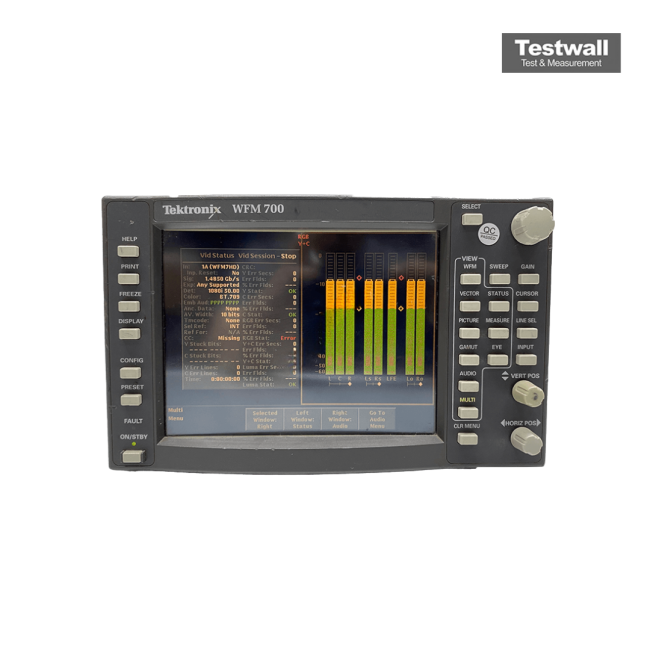

Tektronix WFM700A
| Attribute | Value |
|---|---|
| Display Type | High-resolution flat panel LCD display |
| Video Standards Supported | SD (Standard Definition) and HD (High Definition) including 525i, 625i, 720p, 1080i |
| Input Channels | 4 inputs with simultaneous monitoring capability |
| Signal Formats | Composite, Component, Serial Digital Interface (SDI) up to 1.5 Gb/s |
| Waveform Monitoring Modes | Waveform, Vector, Parade, Overlay, Picture, Audio, Gamut, Data |
| Audio Monitoring | Supports embedded audio (AES/EBU), up to 16 channels with Dolby E/D decoding option |
| Gamut Monitoring | Diamond, Split Diamond, and Arrowhead gamut displays for composite and component signals |
| Closed Captioning Support | EIA-608 and EIA-708 closed caption monitoring and decoding |
| Power Requirements | 100–240 VAC, 50/60 Hz, auto-ranging power supply |
| Form Factor | Half-rack, 1RU portable/rackmount unit |
Tektronix WFM700A Options:
- WFM700A - 2HD - Serial digital monitoring module for SMPTE 292M
- WFM700A - 2A - Serial digital monitoring module for ITU-R BT.601 and SMPTE 292M
- WFM700A - 2M - Serial digital measurement module for ITU-R BT.601 and SMPTE 292M
- WFM700A - DG - AES/EBU digital audio monitoring module
- WFM700A - A0 - North America power
- WFM700A - A1 - Universal EURO power
- WFM700A - A2 - United Kingdom power
- WFM700A - A3 - Australia power
- WFM700A - A5 - Switzerland power
- WFM700A - A6 - Japan power
- WFM700A - AC - China power
- WFM700A - 01 - Portable cabinet
- WFM700A - 02 - Dual rackmount
- WFM700A - C3 - Calibration Service 3 Years
- WFM700A - D1 - Calibration Data Report
- WFM700A - D3 - Calibration Data Report 3 Years (with Option C3)
- WFM700A - R3 - Repair Service 3 Years
- WFM700A - L0 - English user manual
- WFM700A - L5 - Japanese user manual
- WFM700A - L9 - Korean user manual
| Model | WFM700A |
|---|
The Tektronix WFM700A is a versatile multi-format waveform monitor and vectorscope supporting both SD-SDI and HD-SDI signals up to 1.5 GHz. With dual SDI and analog component inputs, it enables flexible integration across post-production and broadcasting workflows. Key display modes include waveform, vectorscope, picture, and audio metrics with advanced error detection.
Optimized for video compliance and integrity, it includes embedded audio/timecode monitoring, remote SNMP/SCPI control, and a portable form factor ideal for studio or field use.
Testwall can supply the used Tektronix WFM700A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM700A.
