Tektronix TPG21
| Attribute | Value |
|---|---|
| Output Channels | 2 Independent Pattern Generator Channels |
| Maximum Data Rate | 1.5 Gb/s per Channel |
| Output Voltage Levels | Adjustable from -2 V to +3.8 V (High and Low independently programmable) |
| Pattern Length | Up to 8,388,608 bits (8 Mb) per Channel |
| Output Impedance | 50 Ω |
| Rise/Fall Time | Approximately 200 ps (20% to 80%) |
| Clock Source | Internal or External Clock Reference |
| Interface/Connectivity | GPIB and RS-232 Remote Control Interface |
| Operating Temperature | 0°C to +50°C |
| Power Requirements | 100–240 V AC, 50/60 Hz, 150 W Maximum |
| Model | TPG21 |
|---|

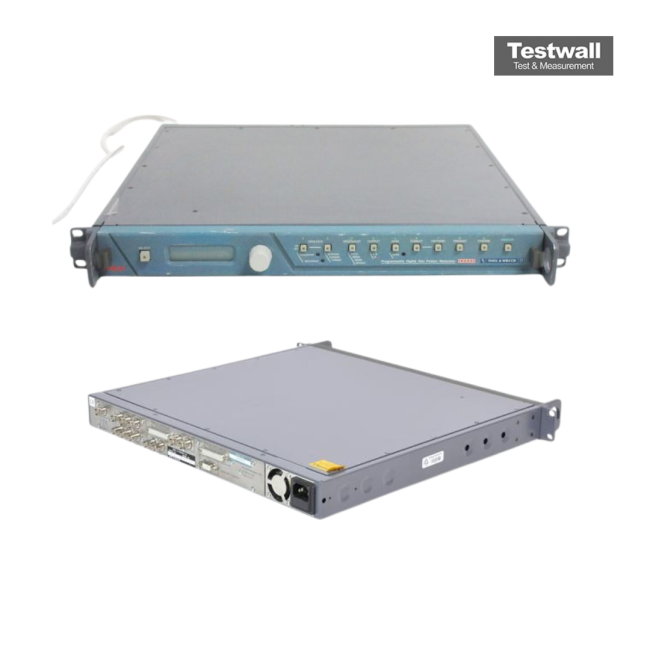

The Tektronix TPG21 is a dedicated test pattern generator crafted for professional video and broadcast environments. It delivers standardized digital video patterns including color bars and grayscale ramps for calibrating and aligning display systems.
Compatible with Tektronix Pattern Master software, the TPG21 supports custom pattern sequencing and remote control, ensuring operational flexibility. Built for durability, it features front-panel controls and stable long-term performance.
Testwall can supply the used Tektronix TPG21, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TPG21.
