Tektronix
Tektronix 1735
PAL/NTSC Waveform Monitor
Two-Channel Line Select Waveform Monitor Type
NTSC, PAL Video Standards Supported
2 Number of Channels
Built-in CRT Display Display Type
Yes – Individual line selection for detailed waveform analysis Line Select Capability
| Attribute | Value |
|---|---|
| Type | Two-Channel Line Select Waveform Monitor |
| Video Standards Supported | NTSC, PAL |
| Number of Channels | 2 |
| Display Type | Built-in CRT Display |
| Line Select Capability | Yes – Individual line selection for detailed waveform analysis |
| Input Impedance | 75 Ohms |
| Bandwidth | 5 MHz |
| Power Requirements | 90–250 VAC, 50/60 Hz |
| Form Factor | Portable / Benchtop |
| Applications | Broadcast video signal monitoring, production, and quality control |
| Model | 1735 |
|---|

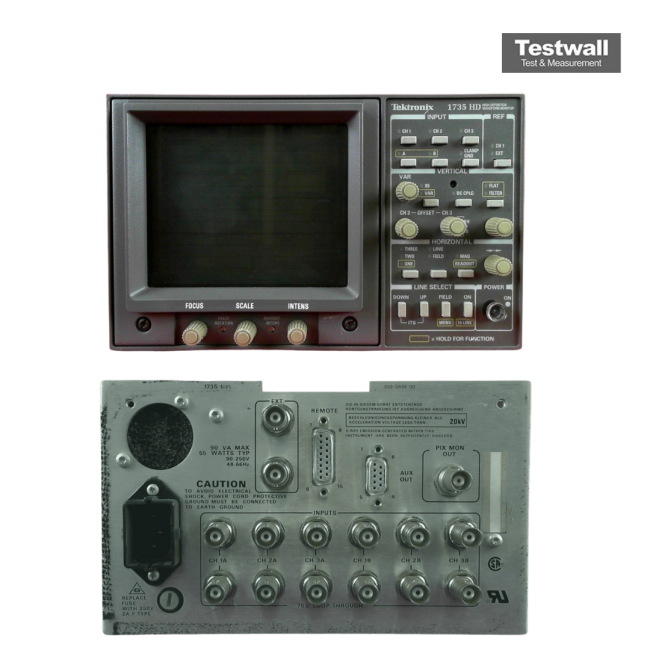

The Tektronix 1735 HD is a multi-standard high-definition waveform monitor with support for 525/60 and 625/50 formats, featuring tri-level or bilevel sync compatibility and wide bandwidth for precise video analysis.
Equipped with microprocessor control and nonvolatile memory, it offers onscreen menus, user-defined setups, and remote sweep/input selection.
Testwall can supply the used Tektronix 1735 HD, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1735 HD.
