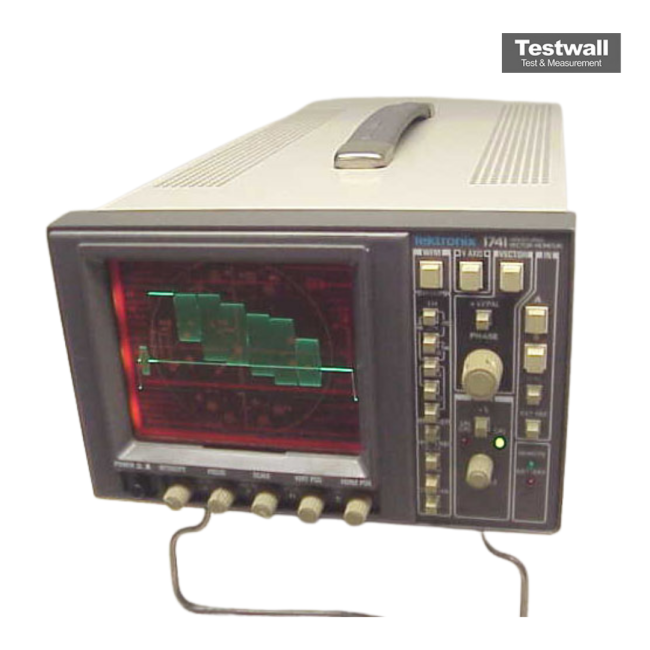

Tektronix 1741
PAL Waveform/Vectorscope
Waveform Monitor Display Type
NTSC, PAL Video Standards Supported
5 MHz Bandwidth
75 Ohms Input Impedance
2 Number of Channels
| Attribute | Value |
|---|---|
| Display Type | Waveform Monitor |
| Video Standards Supported | NTSC, PAL |
| Bandwidth | 5 MHz |
| Input Impedance | 75 Ohms |
| Number of Channels | 2 |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| CRT Display Size | 6 inches (diagonal) |
| Signal Input Connector | BNC |
| Sweep Rates | 2-Line, 2-Field |
Tektronix 1741 Options:
- 1741A - 74 - White CRT Phosphor for any model
| Model | 1741 |
|---|
The Tektronix 1741 is a high-precision vector waveform monitor optimized for NTSC analog video signal monitoring, offering detailed analysis of chroma, luminance, and composite levels.
Key features include waveform and vector display for NTSC, freeze-frame memory, line-select, sweep magnification, and RGB parade for enhanced component signal evaluation.
Testwall can supply the used Tektronix 1741, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1741.
