Tektronix WFM6120
| Attribute | Value |
|---|---|
| Display Type | High-resolution raster display with waveform, vector, and picture monitoring capabilities |
| Signal Inputs | SD/HD-SDI, composite analog video inputs supported |
| Video Standards Supported | SMPTE 259M (SD), SMPTE 292M (HD), 1080i, 1080p, 720p, 525i, 625i |
| Audio Monitoring | Embedded SDI audio monitoring, up to 16 channels, Dolby E/AC-3 decode support |
| Waveform Display Modes | Waveform, vectorscope, parade, overlay, and picture display modes |
| Closed Captioning Support | CEA-608 and CEA-708 closed caption monitoring and decode |
| Timecode Support | VITC and LTC timecode reading and display |
| Gamut Monitoring | Diamond, split diamond, and arrowhead gamut display for composite and component signals |
| Form Factor | Half-rack, 1RU rackmount design for flexible installation |
| Power Requirements | 100–240 VAC, 50/60 Hz, universal power supply input |
Tektronix WFM6120 Options:
- WFM6120 - SD - Standard Definition SDI (standard)
- WFM6120 - CPS - Add support for monitoring NTSC/PAL composite analog video, 2 inputs with passive loopthrough outputs
- WFM6120 - AD - Add support for monitoring digital audio, embedded and AES/EBU inputs, up to 8 AES/EBU inputs (16 channels), up to 4 AES/EBU outputs (8 channels) capabilities available, plus support for monitoring analog audio, up to 12 analog audio inputs, up to 8 analog audio outputs
- WFM6120 - EYE - Add support for eye diagrams, jitter measurement, cable parameter measurements
- WFM6120 - PHY - Add capabilities available on Opt. EYE, plus jitter waveform and eye parameter measurements
- WFM6120 - DAT - Add in-depth video data and Ancillary data analysis
- WFM6120 - AVD - Adds support for AV Delay measurements (requires signals provided from the TG700 with the DVG7 module with A/V Timing mode enabled)
- WFM6120 - CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
- WFM6120 - C3 - Calibration Service 3 Years
- WFM6120 - C5 - Calibration Service 5 Years
- WFM6120 - D1 - Calibration Data Report
- WFM6120 - D3 - Calibration Data Report 3 Years (with Option C3)
- WFM6120 - D5 - Calibration Data Report 3 Years (with Option C5)
- WFM6120 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- WFM6120 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- WFM6120 - R3 - Repair Service 3 Years (including warranty)
- WFM6120 - R5 - Repair Service 5 Years (including warranty)
- WFM6120 - A0 - Power connection – North America
- WFM6120 - A1 - Power connection – Universal Euro
- WFM6120 - A2 - Power connection – United Kingdom
- WFM6120 - A3 - Power connection – Australia
- WFM6120 - A5 - Power connection – Switzerland
- WFM6120 - A6 - Power connection – Japan
- WFM6120 - A10 - Power connection – China
- WFM6120 - A11 - Power connection – India
- WFM6120 - A12 - Power connection – Brazil
- WFM6120 - A99 - Power connection – No power cord or AC adapter
- WFM6120 - L0 - English manual
- WFM6120 - L5 - Japanese manual
- WFM6120 - L7 - Simplified Chinese manual
| Model | WFM6120 |
|---|

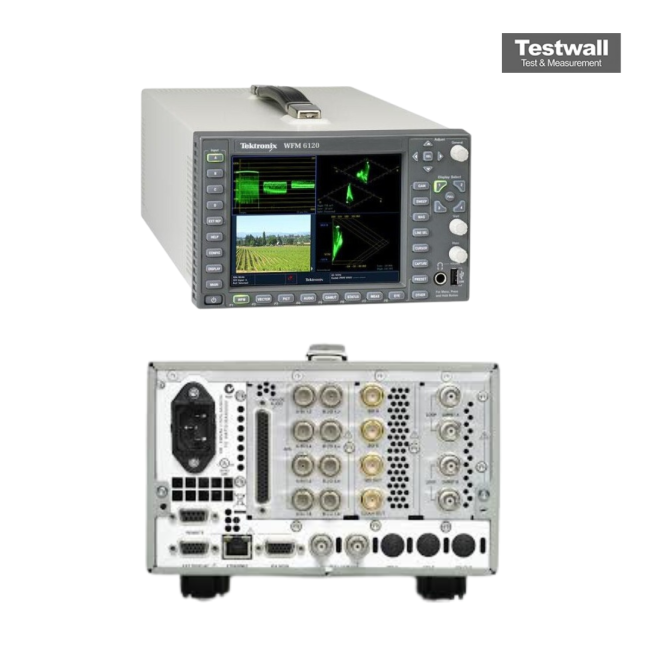

Tektronix WFM6120 Advanced Waveform Monitor, HD/SD
The Tektronix WFM6120 measurement and monitoring waveform monitor provides precision capabilities such as Patented See and Solve ™ displays, Digital Data Analysis, CaptureVu, Physical Layer measurement, and A/V Delay monitoring, making Tektronix the brand of choice for all measurement and monitoring needs that require signal analysis and unquestionable accuracy. The Tektronix WFM6120 provides flexible options and field-installable upgrade kits to allow you to make a smooth transition from analog to standard definition (SD-SDI). Standard SD-SDI support and available Composite Analog video allow monitoring display modes of Waveform, Vector, Gamut, Timing, and Status. Optional Analog and Digital audio monitoring can be added to the instrument to provide a variety of audio level displays and audio loudness monitoring. Sophisticated measurement and analysis functions are available, such as physical layer eye and jitter display, data analysis, and A/V Delay measurement.
The Tektronix WFM6120 offers performance monitoring and measurement capabilities for SD-SDI and Analog Composite Video (CPS) formats.The Tektronix WFM6120 waveform monitor accepts a variety of input signal formats and external references. The monitor will automatically detect the signal format and establish the appropriate settings for the various displays.
