Rohde & Schwarz VCA
| Attribute | Value |
|---|---|
| Function | Variable Cable Attenuator (VCA) for signal level adjustment in RF and microwave test systems |
| Frequency Range | Up to 3 GHz |
| Attenuation Range | 0 dB to 127 dB in 1 dB steps |
| Impedance | 50 Ohm |
| Connector Type | N-type female connectors |
| Control Interface | Compatible with Rohde & Schwarz signal generator and test system control interfaces |
| Maximum Input Power | 1 W (30 dBm) |
| VSWR | < 1.5:1 typical across operating frequency range |
| Operating Temperature | 0°C to +55°C |
| Application | Used with Rohde & Schwarz signal generators and test systems for automated level control and receiver testing |
| Model | VCA |
|---|

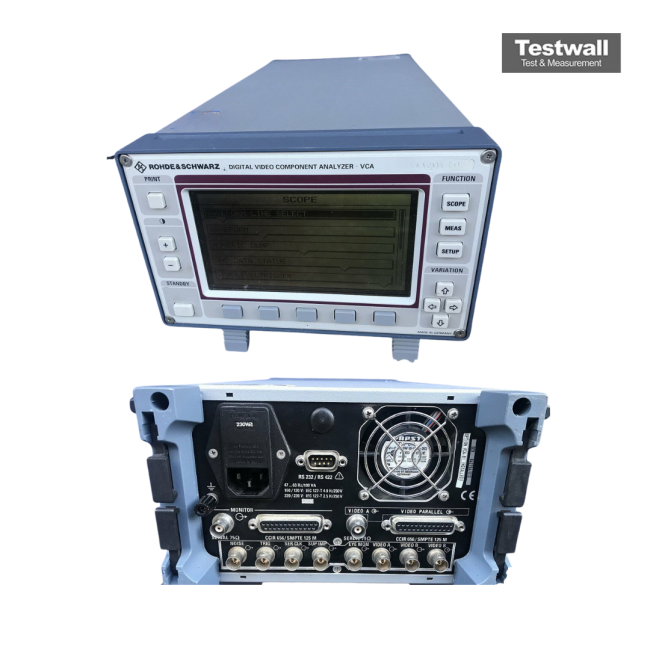

The Rohde & Schwarz VCA is a Digital Video Component Analyzer offering waveform and bit‑level analysis of digital video signals. It supports 8/10‑bit formats, SMPTE standards, and includes advanced triggering, TRS verification, error logging, and optional DTL jitter analysis up to 800 MHz. It features a 240×128 LCD, remote operation via RS‑232/422, and built‑in screen capture.
Ideal for studio and broadcast environments, it detects timing issues, signal distortions, and analyzes chrominance/luminance levels with nanosecond precision. Supports TRS, EDH, timecodes, and embedded audio decoding.
Testwall can supply the used Rohde & Schwarz VCA, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz VCA.
