Tektronix WFM90
| Attribute | Value |
|---|---|
| Display Type | Waveform Monitor with LCD Display |
| Video Standards Supported | SD (Standard Definition) Video Monitoring |
| Input Signal Format | Composite and Component Analog Video |
| Waveform Display Modes | Waveform, Vector, Parade, and Overlay |
| Graticule | Electronic Graticule with Variable Intensity |
| Input Impedance | 75 Ohms |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Form Factor | Portable/Benchtop Unit |
| Certifications | CE, UL Listed, FCC Compliant |
| Model | WFM90 |
|---|

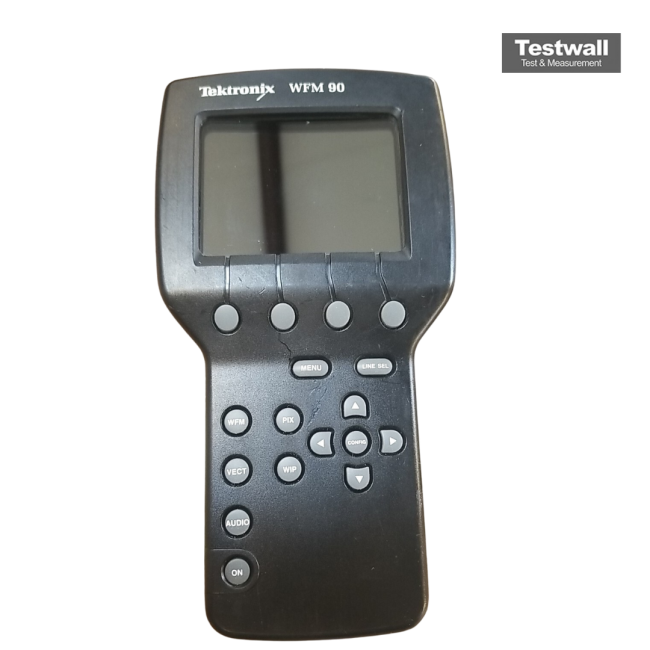

The Tektronix WFM90 is a truly portable waveform monitor designed for versatility, operating on battery or AC power. It features a 4-inch (102-mm) color LCD display for high-quality image and waveform analysis. Integrated functions include a picture monitor, vectorscope, audio monitor, and waveform-in-picture mode, ensuring efficient video signal evaluation. Models support NTSC (WFM90) or PAL (WFM91) standards.
Ideal for field and studio environments, the WFM90 offers line-select display and video output to external monitors, making it an essential tool for video professionals requiring mobility without sacrificing capability.
Testwall can supply the used Tektronix WFM90, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM90.
