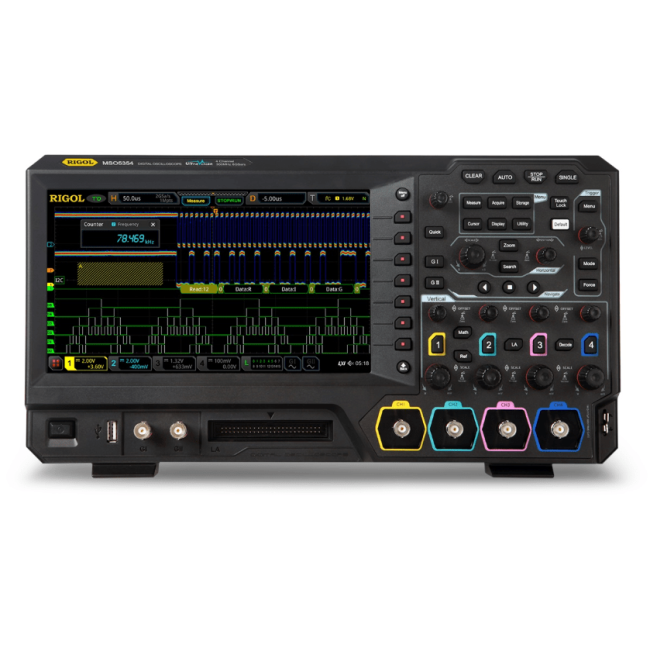

Rigol MSO5354
High quality 4 channel oscilloscope with 350 MHz Bandwidth, 8 GSa/s sample rate, up to 200 Mpts memory depth and a 22.9 cm touchdisplay 1024x600 pixel.
Upgradable to a MSO with a 16 channel logic analyzer and expandable by a 2 channel waveform generator.
350 MHz Bandwidth
4 Analog Channels + 16 Digital Channels Channels
8 GSa/s (Single Channel), 4 GSa/s (All Channels) Sample Rate
250 Mpts (Single Channel), 125 Mpts (Dual Channel) Memory Depth
8-bit (up to 12-bit in high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Channels | 4 Analog Channels + 16 Digital Channels |
| Sample Rate | 8 GSa/s (Single Channel), 4 GSa/s (All Channels) |
| Memory Depth | 250 Mpts (Single Channel), 125 Mpts (Dual Channel) |
| Vertical Resolution | 8-bit (up to 12-bit in high resolution mode) |
| Waveform Capture Rate | 500,000 wfms/s |
| Display | 10.1-inch capacitive touch screen, 1024 x 600 resolution |
| Trigger Types | Edge, Pulse, Slope, Video, Pattern, RS232, I2C, SPI, CAN, and more |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
| Connectivity | USB Host, USB Device, LAN (LXI), HDMI, Aux Out |
| Model | MSO5354 |
|---|
The MSO5000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology
developed by RIGOL. Integrating 6 independent instruments into one, the MSO5000 series is equipped with super high sample bandwidth ratio of 8 GSa/s, extremely high memory depth of up to 200 Mpts, clear 9" display, excellent waveform capture rate of 500.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today's inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers.
The MSO5000 series digital oscilloscope launched by RIGOL this time integrates 7 independent instruments into 1, including one digital oscilloscope, one spectrum analyzer, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO5000 series offers you a flexible and economical solution to address your actual needs.
