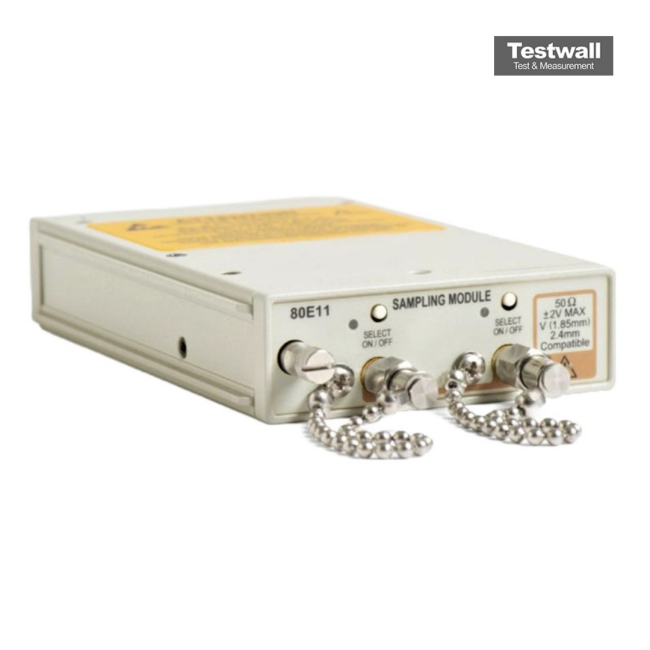

Tektronix 80E11
Electrical Sampling Module, Dual Ch., 70 GHz Ultra-low Jitter
8 GHz Bandwidth
55 ps Rise Time
2 Number of Channels
50 Ω Input Impedance
10 mV/div to 200 mV/div Vertical Sensitivity Range
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Rise Time | 55 ps |
| Number of Channels | 2 |
| Input Impedance | 50 Ω |
| Vertical Sensitivity Range | 10 mV/div to 200 mV/div |
| Maximum Input Voltage | 2.5 V RMS |
| Timebase Range | 10 ps/div to 1 ks/div |
| Connector Type | SMA (female) |
| Compatible Mainframe | Tektronix DSA8200, TDS8200 |
| Operating Temperature | 0°C to 50°C |
Tektronix 80E11 Options:
- 80E11 - C3 - Calibration Service 3 Years
- 80E11 - C5 - Calibration Service 5 Years
- 80E11 - D1 - Calibration Data Report
- 80E11 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- 80E11 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- 80E11 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- 80E11 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- 80E11 - R3 - Repair Service 3 Years (including warranty)
- 80E11 - R5 - Repair Service 5 Years (including warranty)
| Model | 8.00E+12 |
|---|
The Tektronix 80E11 is a dual-channel electrical sampling module with selectable 70/60/40 GHz bandwidth, delivering exceptional signal fidelity and fastest rise time measurements for high-speed applications.
Its 1.85 mm female connectors, 50 ±1.0 Ω input impedance, and support for extender cables ensure optimal measurement flexibility and precision near the DUT.
Testwall can supply the used Tektronix 80E11, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80E11.
