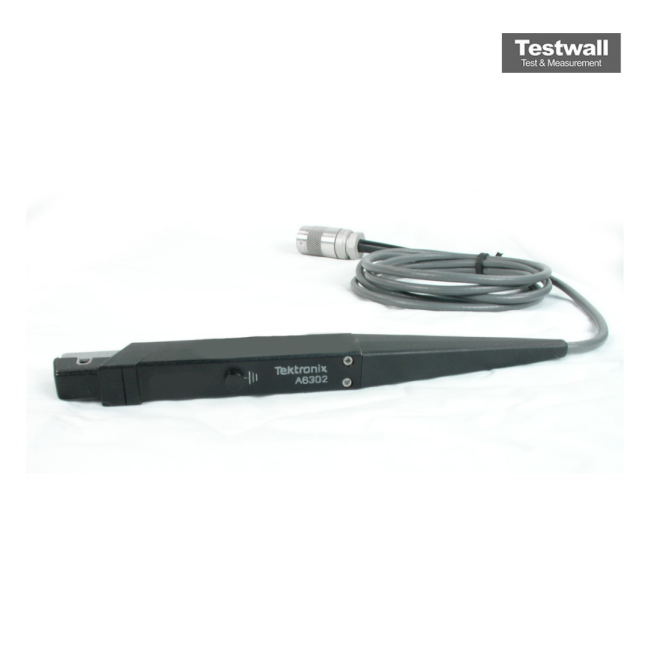

Tektronix A6302
| Attribute | Value |
|---|---|
| Current Range | 20 A RMS / 50 A Peak |
| Bandwidth | DC to 50 MHz |
| Sensitivity | 100 mV/A |
| Maximum Conductor Size | 5 mm diameter |
| Compatible Amplifier | AM503B / AM5030 Current Probe Amplifier |
| Probe Type | AC/DC Current Probe |
| Rise Time | 7 ns |
| Operating Temperature | 0°C to +50°C |
| Cable Length | 1.5 m (approximately) |
| Connector Type | BNC Output Connector |
| Model | A6302 |
|---|
The Tektronix A6302 50MHz 20A Current Probe delivers accurate current measurement with a 50 MHz bandwidth and capability of up to 20A. It ensures minimal signal distortion, low insertion loss, and high fidelity, ideal for high-speed test environments.
Perfect for power electronics, transient analysis, and circuit diagnostics, it integrates seamlessly with Tektronix oscilloscopes to provide reliable, consistent results in demanding applications.
Testwall can supply the used Tektronix A6302 50MHz 20A Current Probe, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A6302 50MHz 20A Current Probe.
