Tektronix
Tektronix P6248
1.5 GHz Bandwidth
233 ps Rise Time
50 Ω (terminated) Input Impedance
Differential Active Probe Probe Type
±8 V Dynamic Range
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Rise Time | 233 ps |
| Input Impedance | 50 Ω (terminated) |
| Probe Type | Differential Active Probe |
| Dynamic Range | ±8 V |
| Common Mode Rejection Ratio (CMRR) | 34 dB at 1 GHz |
| Input Capacitance | 0.7 pF |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | ±15 V DC + Peak AC |
| Compatible Oscilloscopes | Tektronix TDS/CSA Series with TekProbe Interface |
Tektronix P6248 Options:
- P6248 - C3 - Calibration Service 3 Years
- P6248 - C5 - Calibration Service 5 Years
- P6248 - D1 - Calibration Data Report
- P6248 - D3 - Calibration Data Report 3 Years (with Option C3)
- P6248 - D5 - Calibration Data Report 5 Years (with Option C5)
- P6248 - R3 - Repair Service 3 Years
- P6248 - R5 - Repair Service 5 Years
| Model | P6248 |
|---|

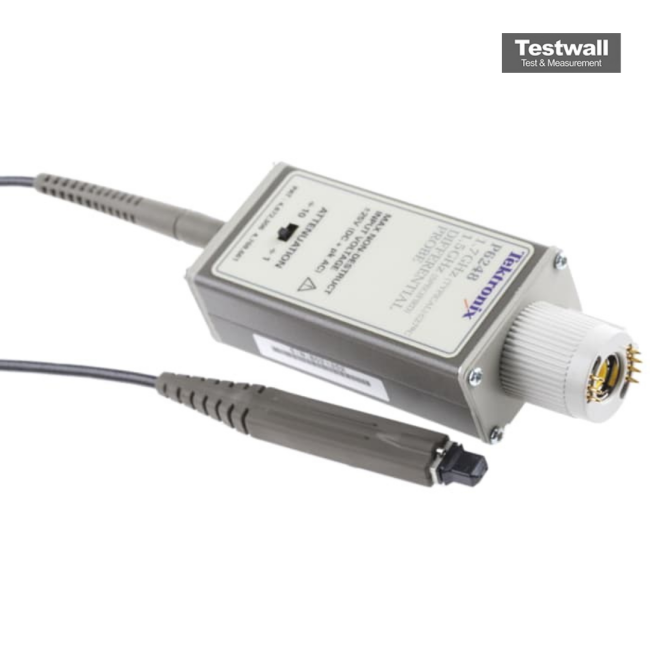

The Tektronix P6248 Differential Probe provides up to 1.85 GHz bandwidth in 10X mode and 1.5 GHz guaranteed in 1X mode, with <1 pF input capacitance and >60 dB CMRR. It connects via TEKPROBE® BNC interface and includes standard 0.025 in. connectors for versatile test setups.
Ideal for use with oscilloscopes, spectrum and network analyzers, it supports applications in high-speed communications, disk drive design, and semiconductor testing.
Testwall can supply the used Tektronix P6248, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6248.
