Tektronix

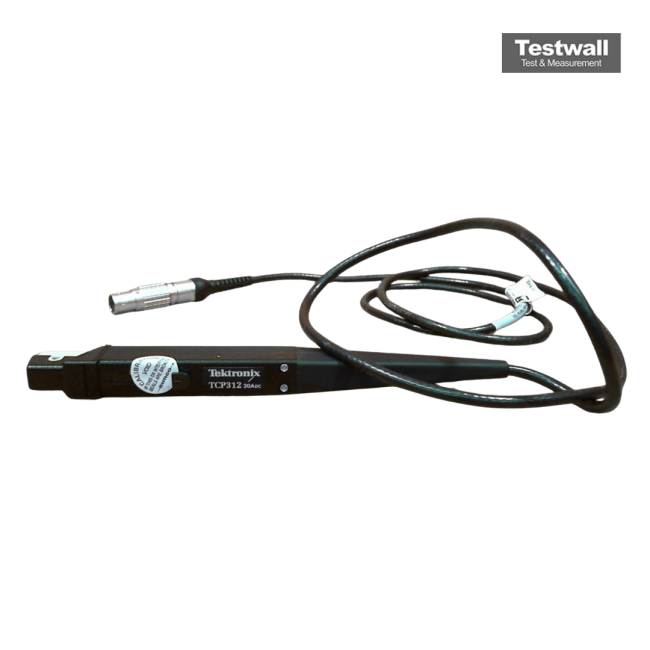

Tektronix TCP312
AC/DC current Probe
100 MHz Bandwidth
30 A DC Maximum DC Current
50 A Peak Maximum Peak Current
10 mA RMS (minimum detectable) Current Sensitivity
100 mV/A Output Sensitivity
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Maximum DC Current | 30 A DC |
| Maximum Peak Current | 50 A Peak |
| Current Sensitivity | 10 mA RMS (minimum detectable) |
| Output Sensitivity | 100 mV/A |
| Maximum Conductor Size | 10 mm diameter |
| Compatible Amplifier | TCPA300 Current Probe Amplifier |
| Rise Time | 3.5 ns |
| Operating Temperature | 0°C to +50°C |
| Connector Type | Proprietary TCP amplifier interface connector |
Tektronix TCP312 Options:
- TCP312 - C3 - Calibration Service 3 Years
- TCP312 - C5 - Calibration Service 5 Years
- TCP312 - D1 - Calibration Data Report
- TCP312 - D3 - Calibration Data Report 3 Years (with Option C3)
- TCP312 - D5 - Calibration Data Report 5 Years (with Option C5)
- TCP312 - R3 - Repair Service 3 Years
- TCP312 - R5 - Repair Service 5 Years
| Model | TCP312 |
|---|
The Tektronix TCP312 is a high-bandwidth, high-accuracy current probe capable of AC/DC measurement up to 30 A with a 100 MHz bandwidth and ≤ 3.5 ns rise time. It offers precise scaling, flat frequency response when used with TCPA300 amplifier, and floating measurement capability up to 6000 V.
This probe is ideal for demanding environments, high-voltage systems, and features simple degaussing/auto-balance for optimal calibration readiness.
Testwall can supply the used Tektronix TCP312, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TCP312.
